Metal Lay-In Ceiling Tiles
Durable, Acoustic Metal Grid Panels
Diamond Ceilings manufactures premium metal lay-in ceiling tiles engineered for modern commercial and institutional environments. These tiles are designed to fit seamlessly into exposed grid ceiling systems, allowing fast installation, easy access to utilities and dependable long-term performance. Built from aluminium or galvanized steel, lay-in panels deliver a clean architectural appearance along with high durability, excellent acoustic, fire resistance, and low maintenance, while allowing quick tile replacement without disrupting the grid. Diamond offers two finish options—Powder Coated and Colour Coated (PPGI) — both durable, low-maintenance, and resistant to corrosion.
Diamond Lay-In Metal Ceiling Tiles are manufactured to meet CPWD approved specifications.
Galvanized
120 gms/m2
Powder Coated
(80 Microns)
NRC >= 0.6
Lay In Metal Ceiling Tiles - Powder Coated

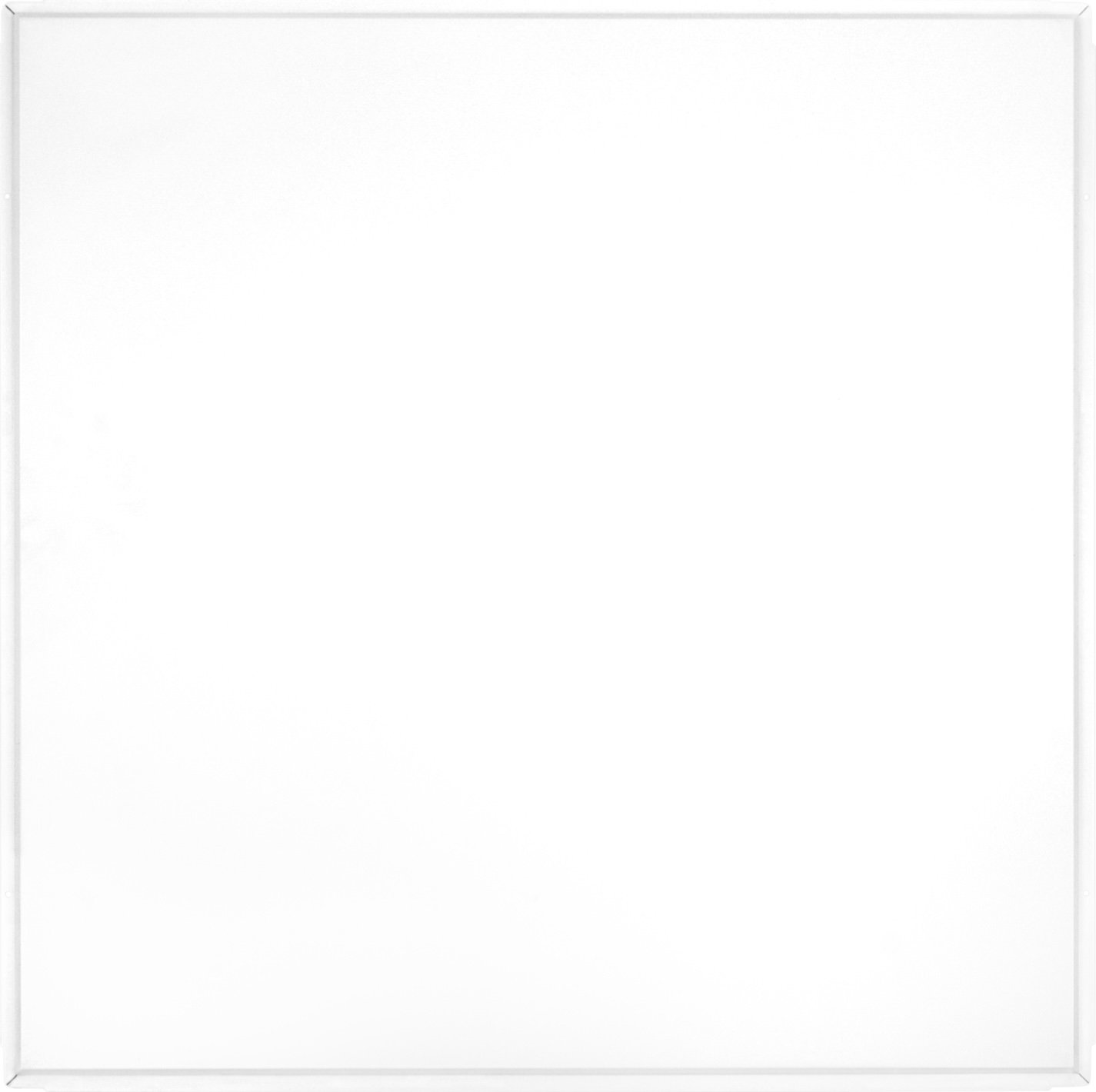

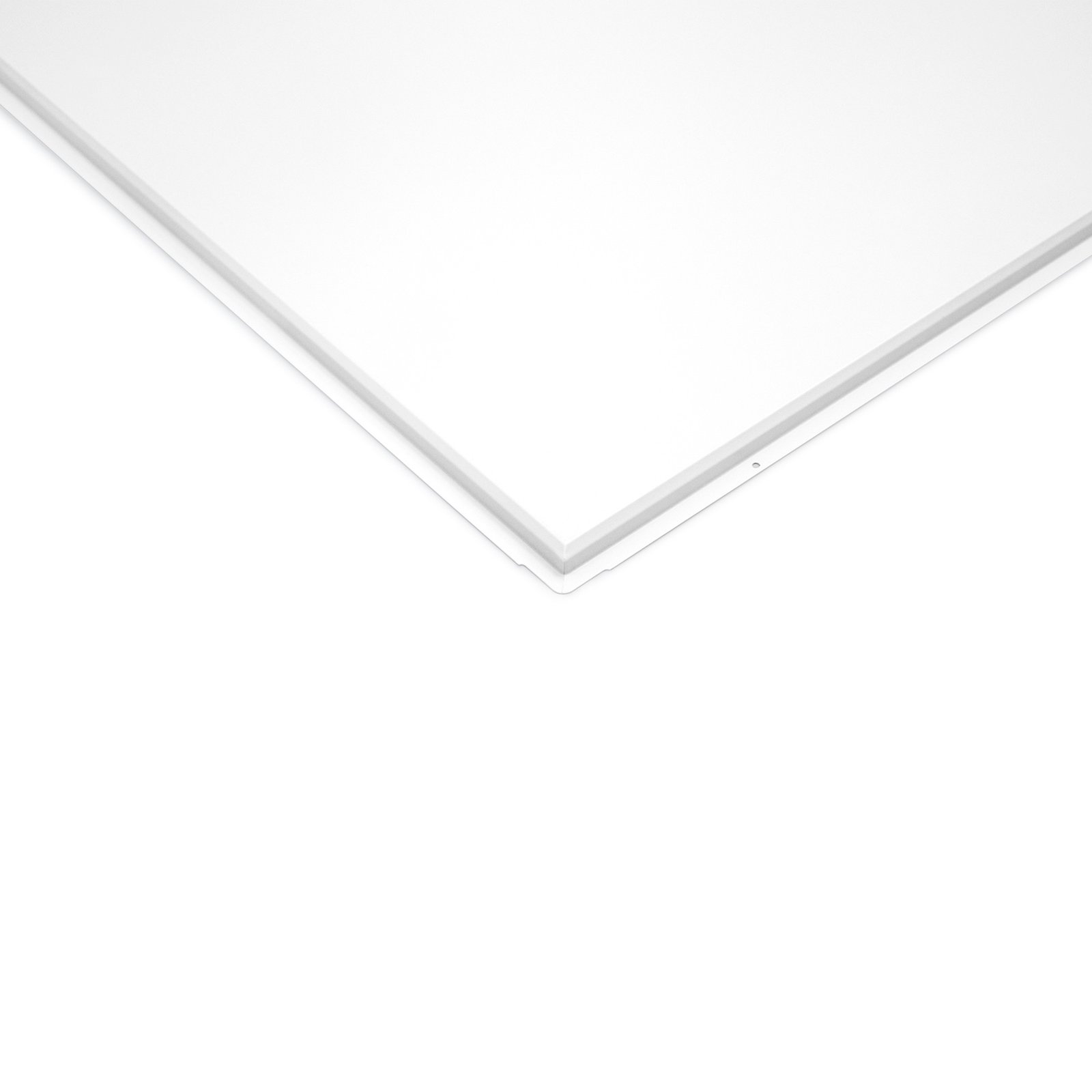

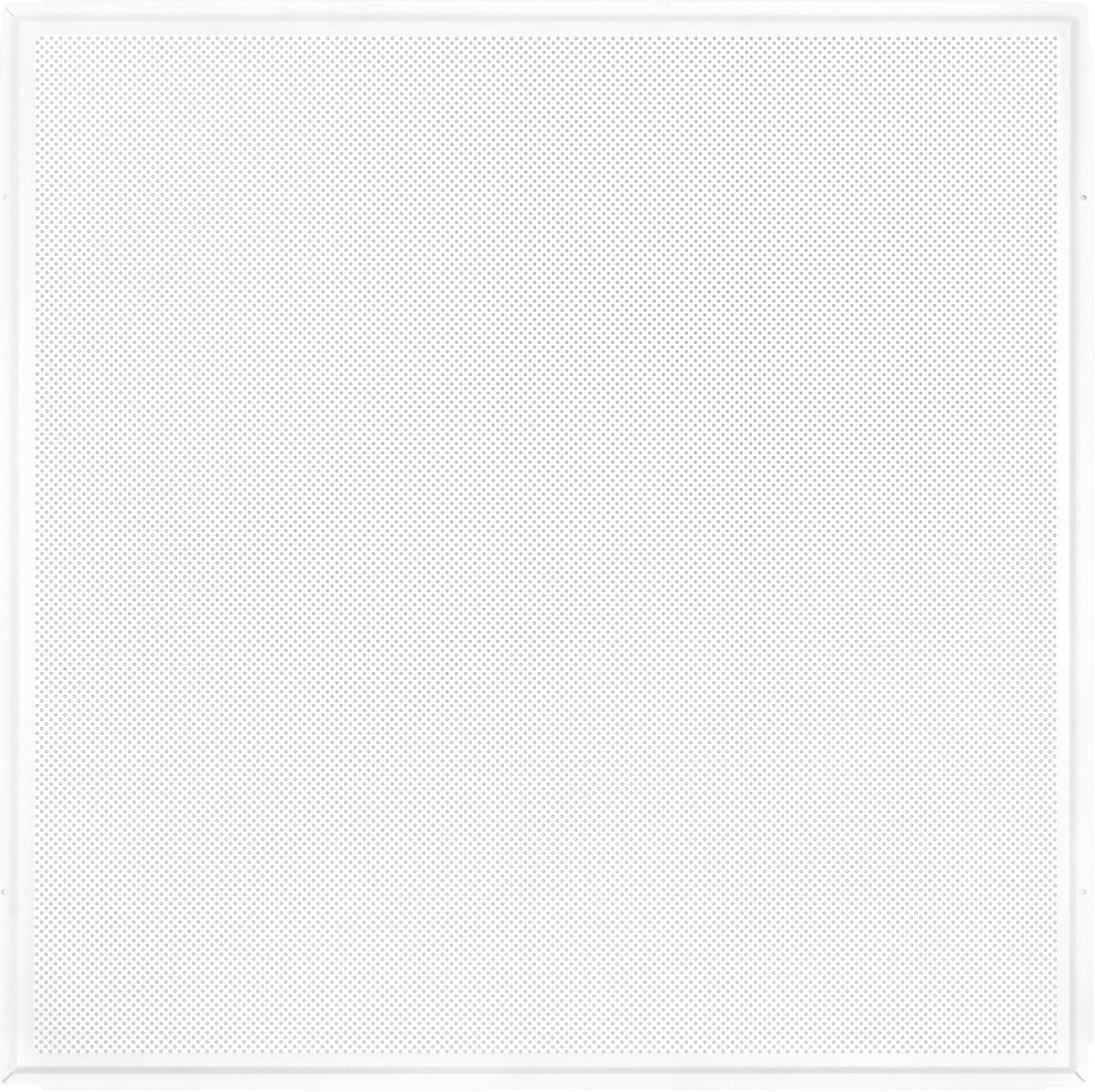

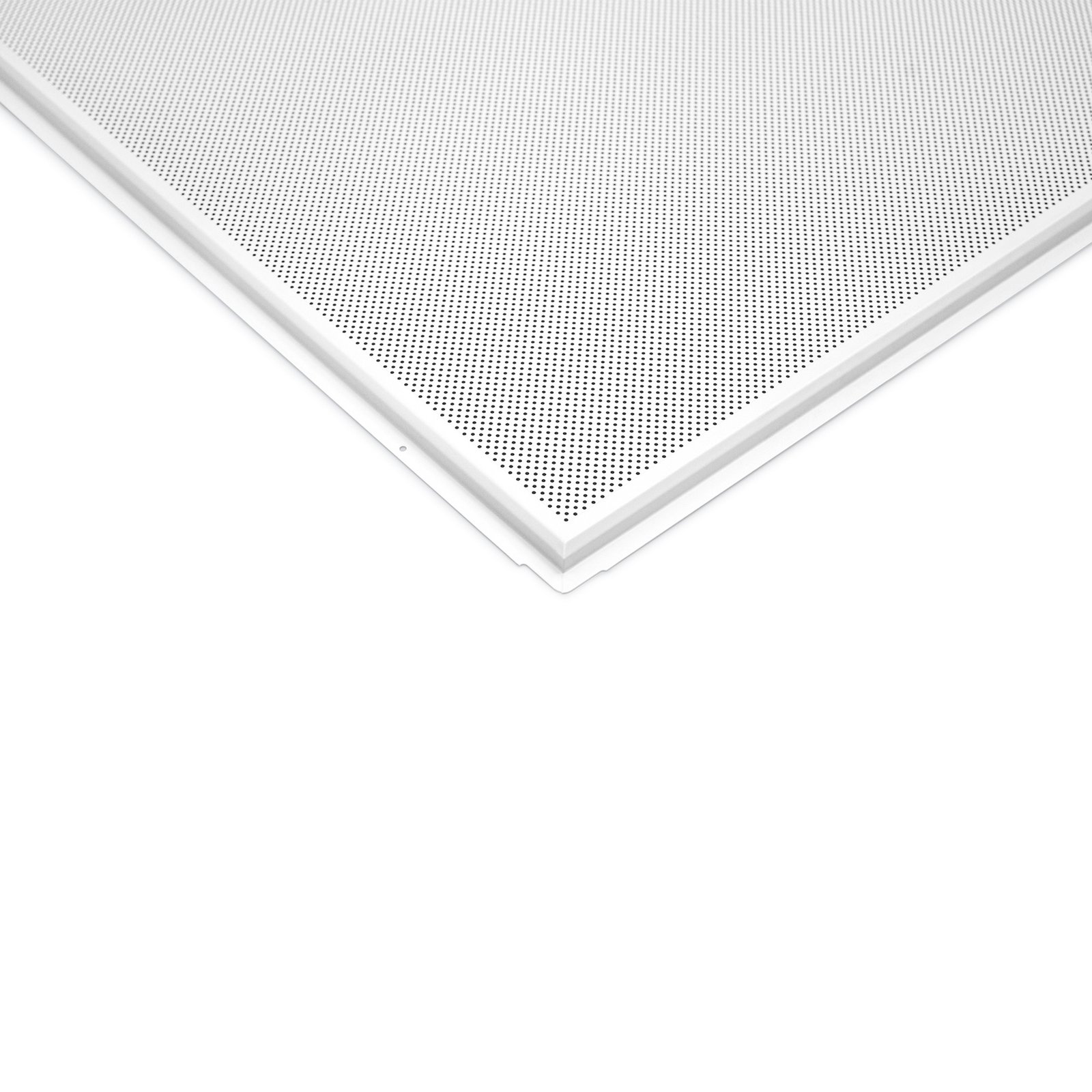

Diamond DB 24

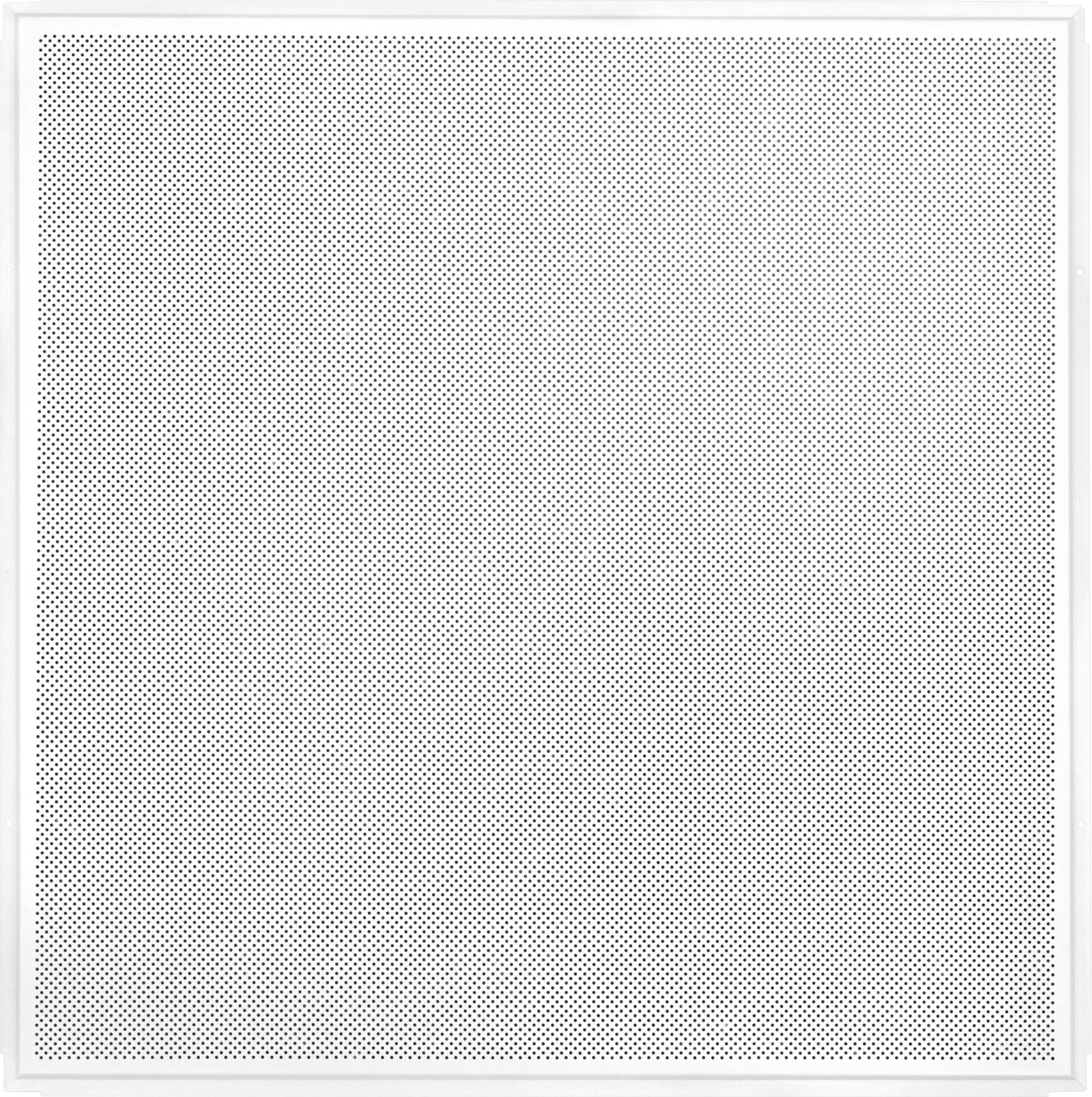

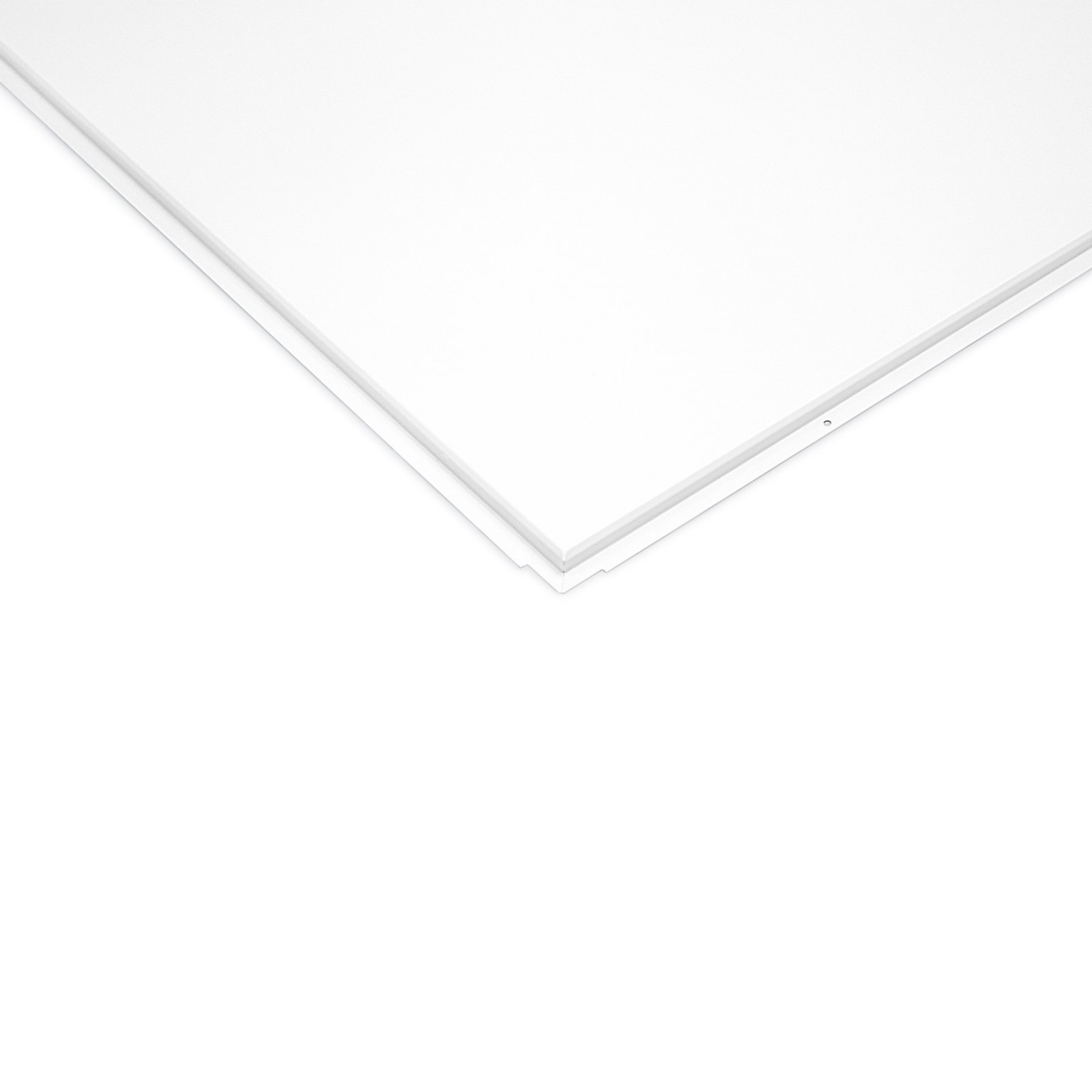

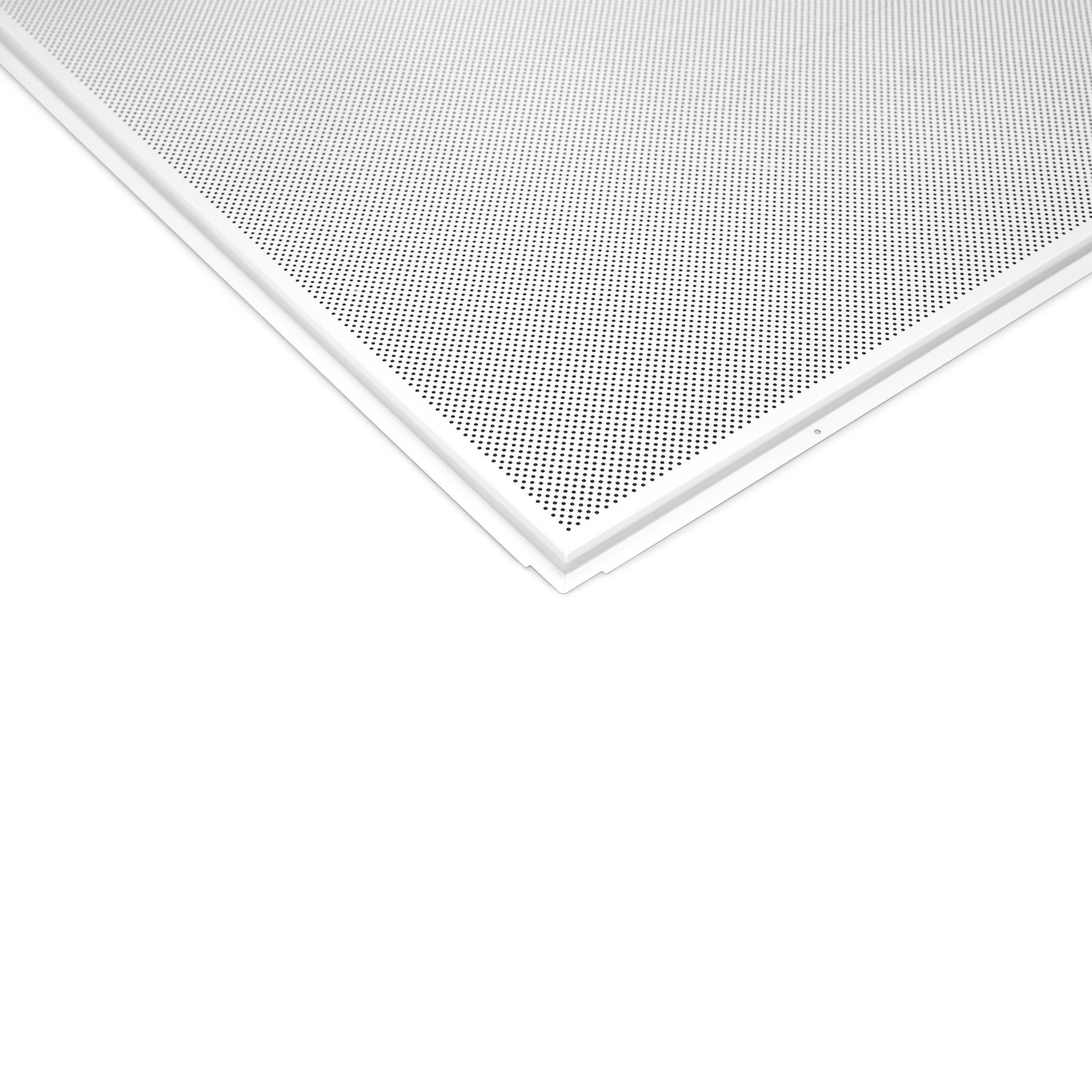

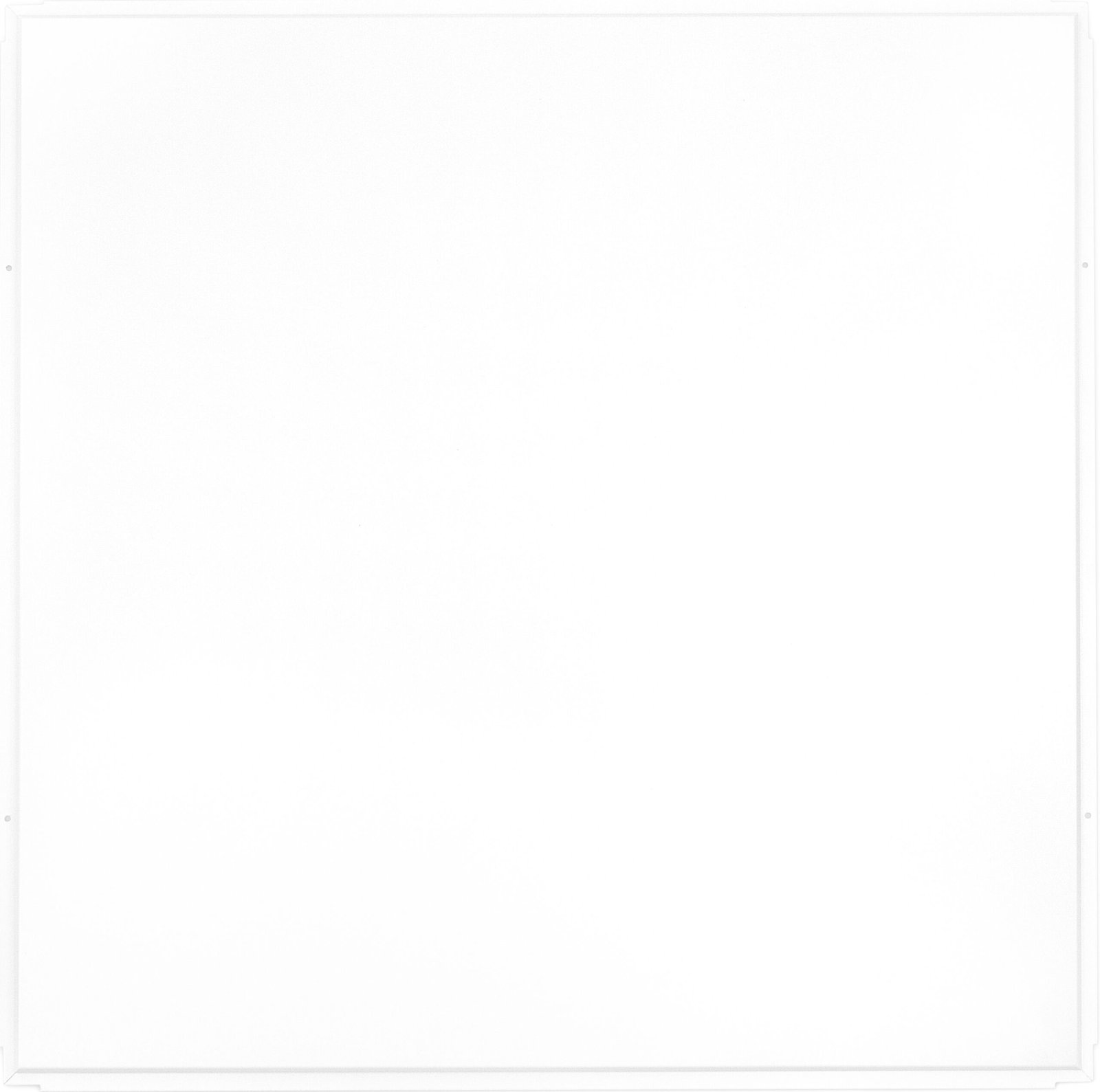

Diamond BV 24

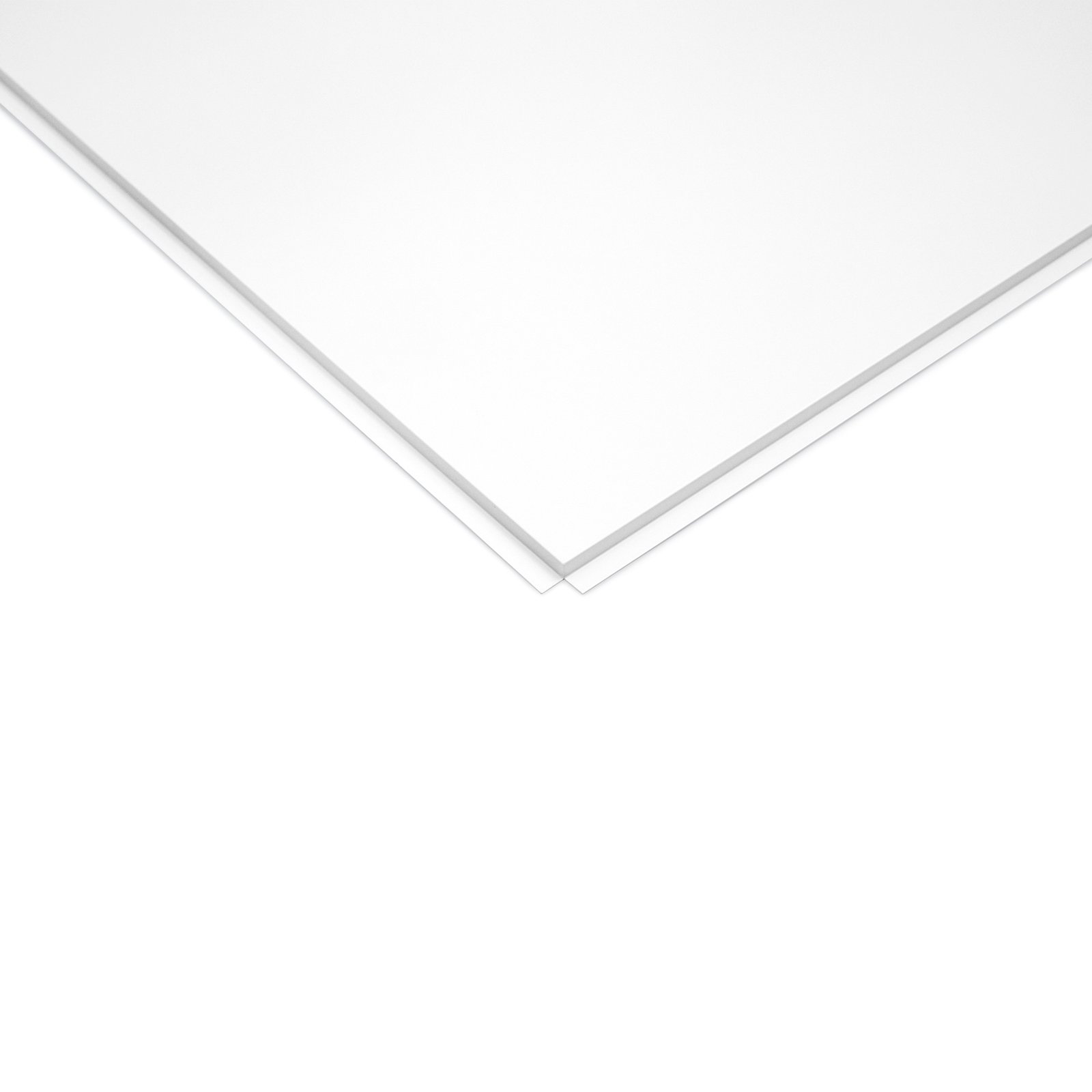

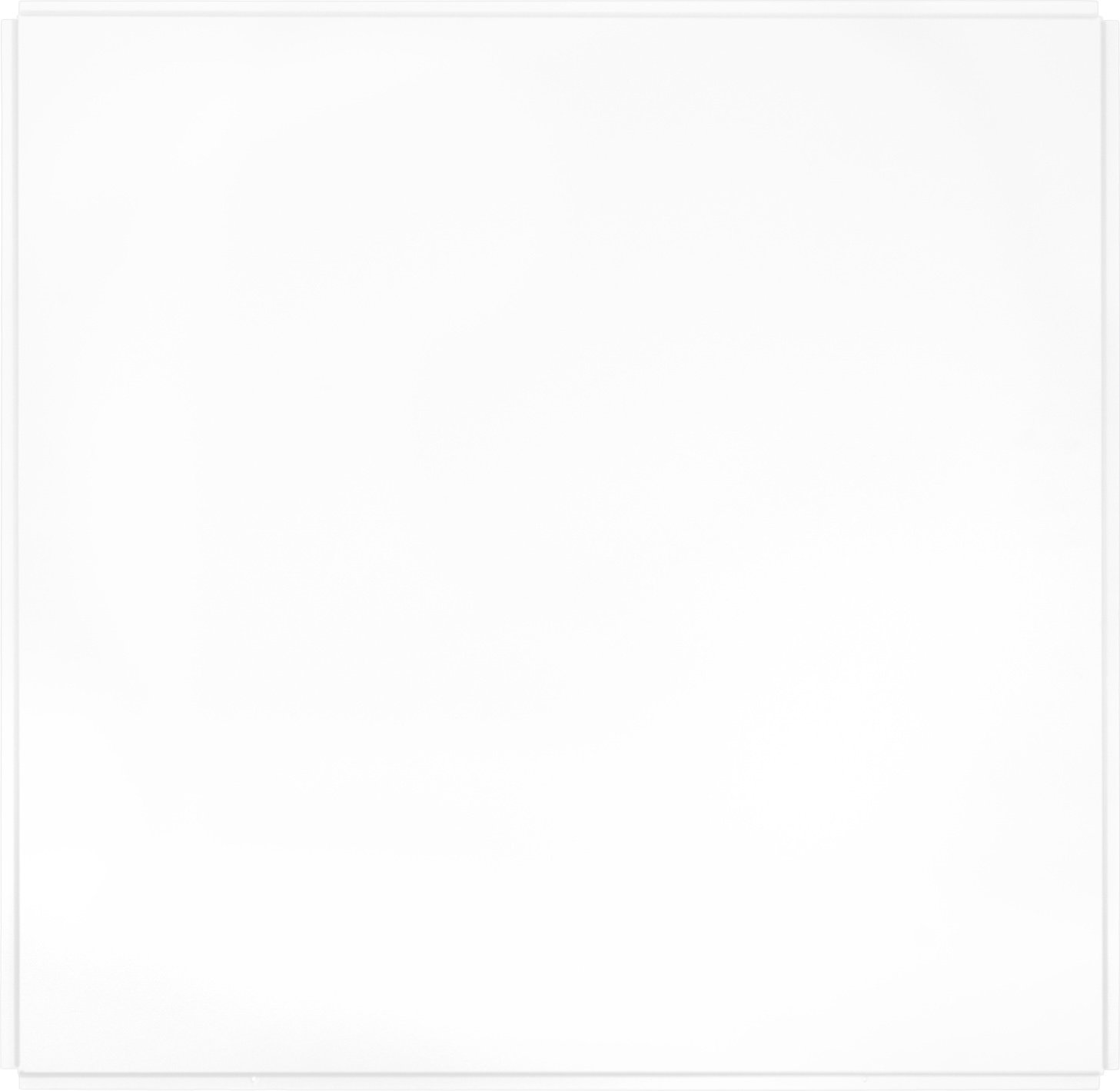

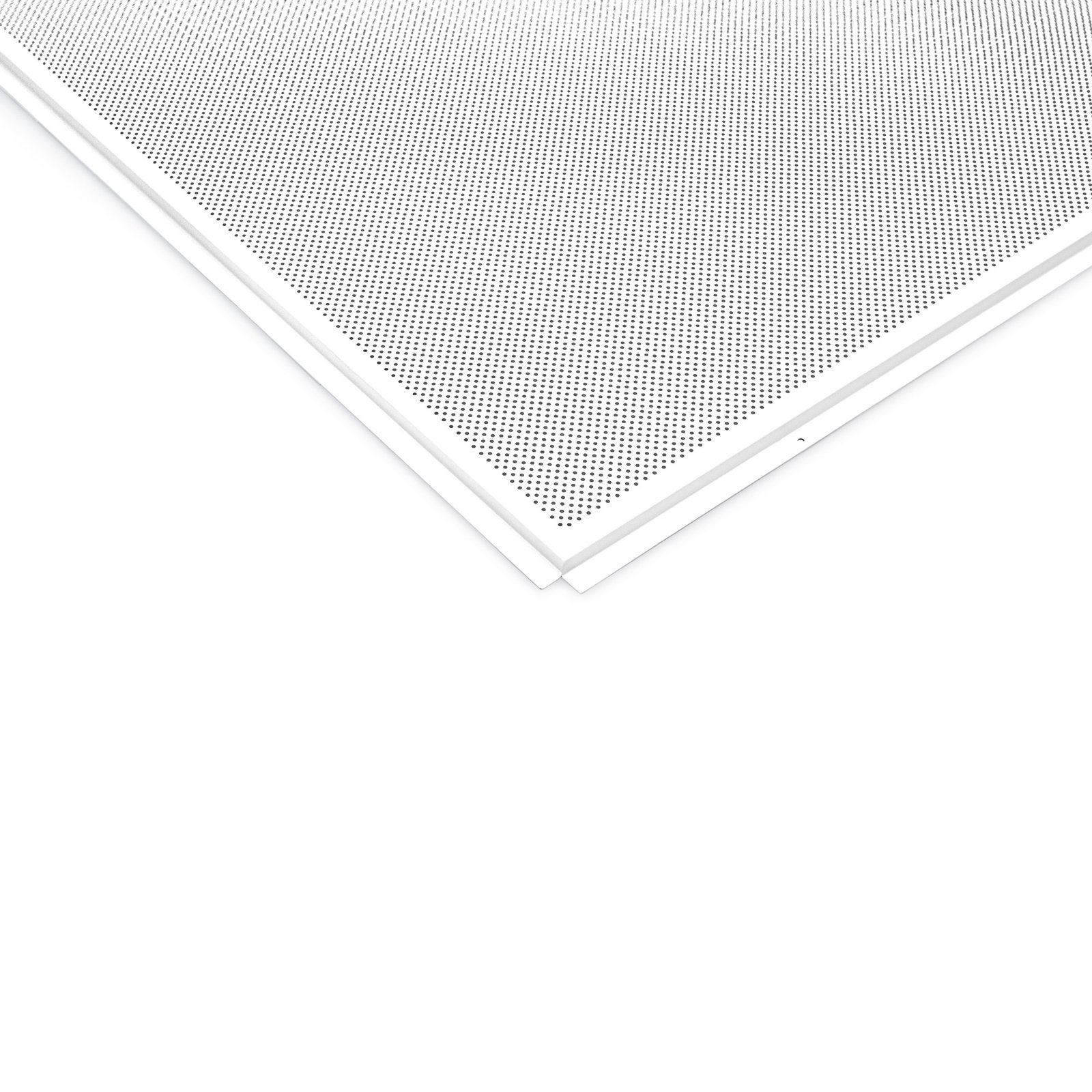

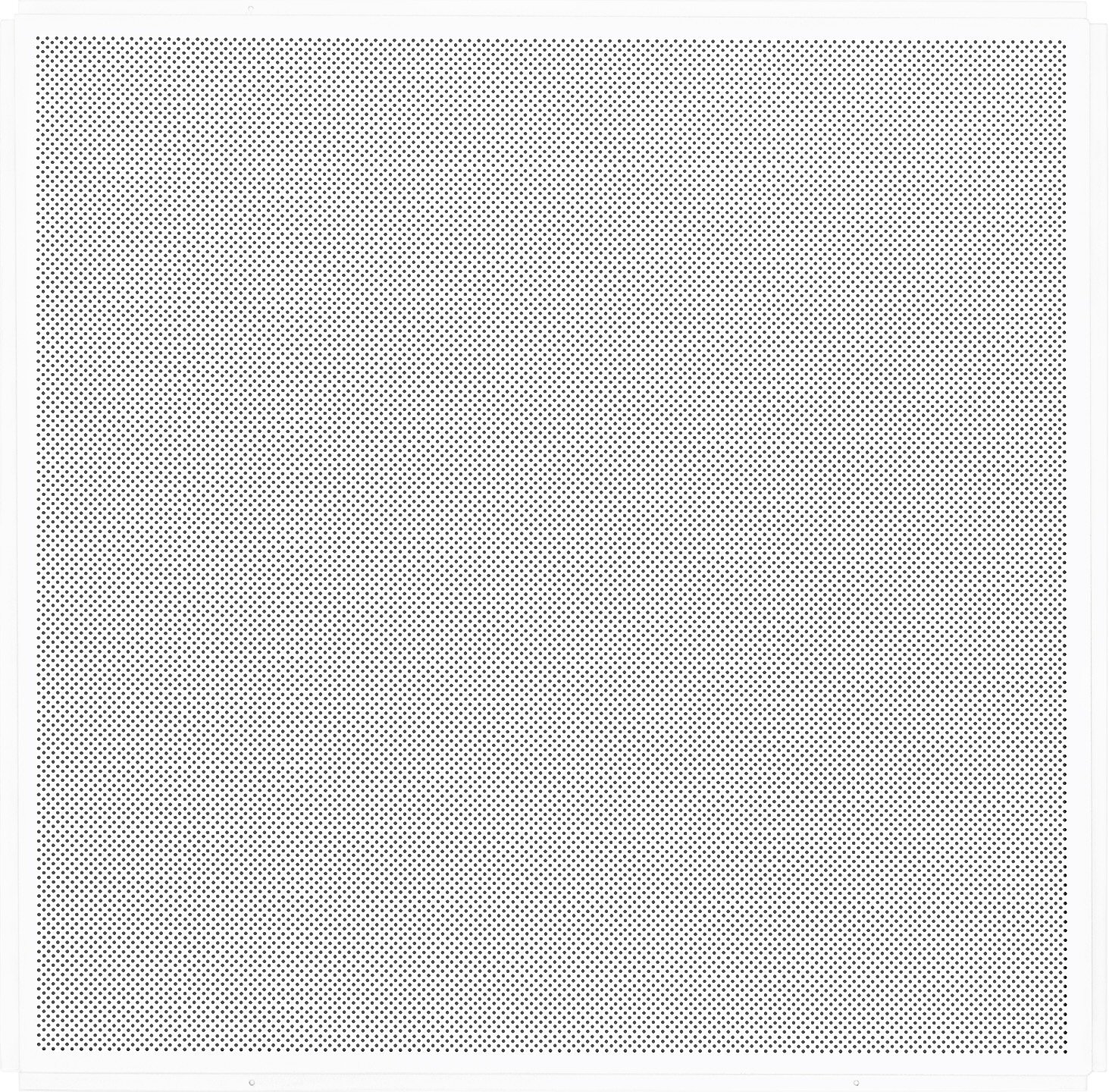

Diamond RA 24

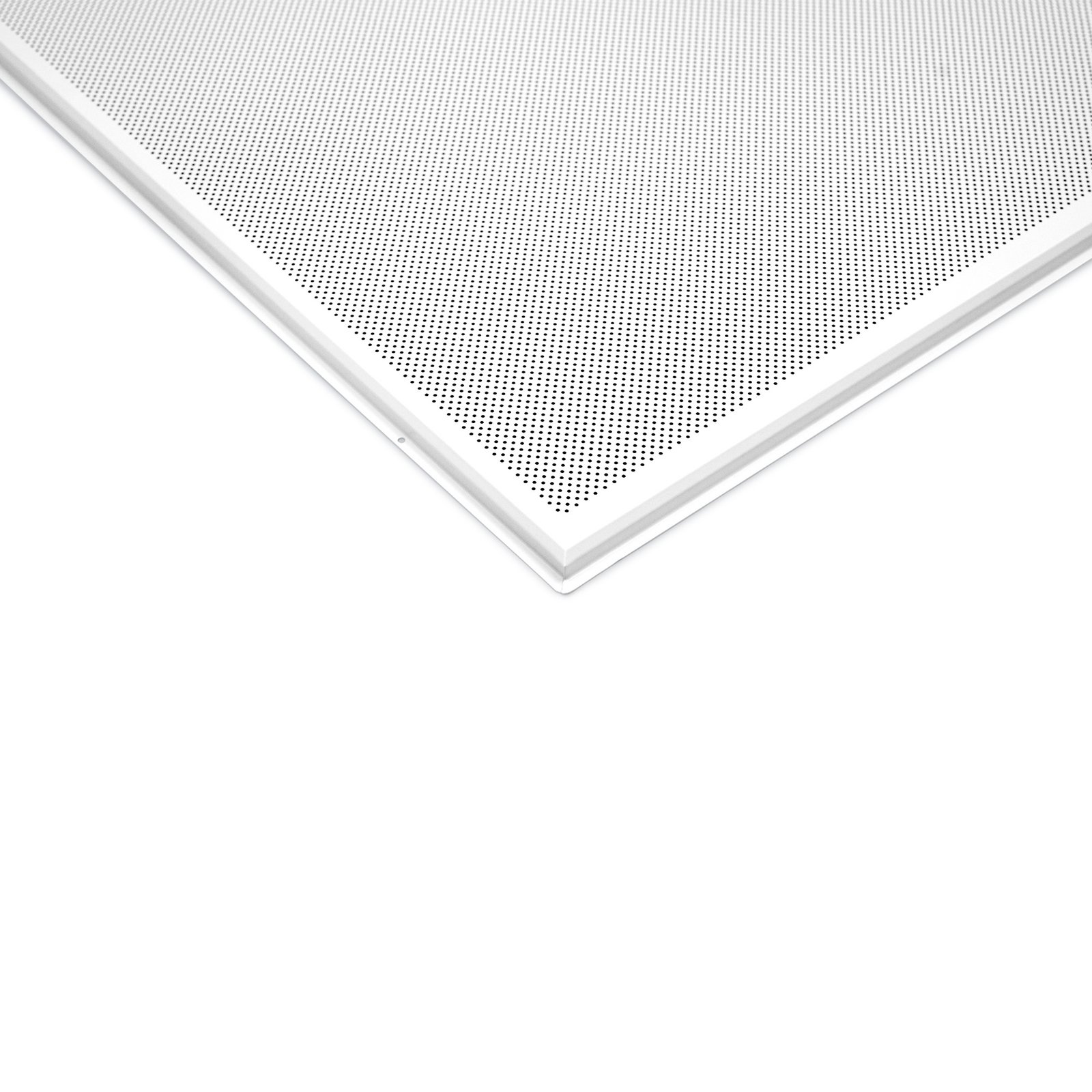

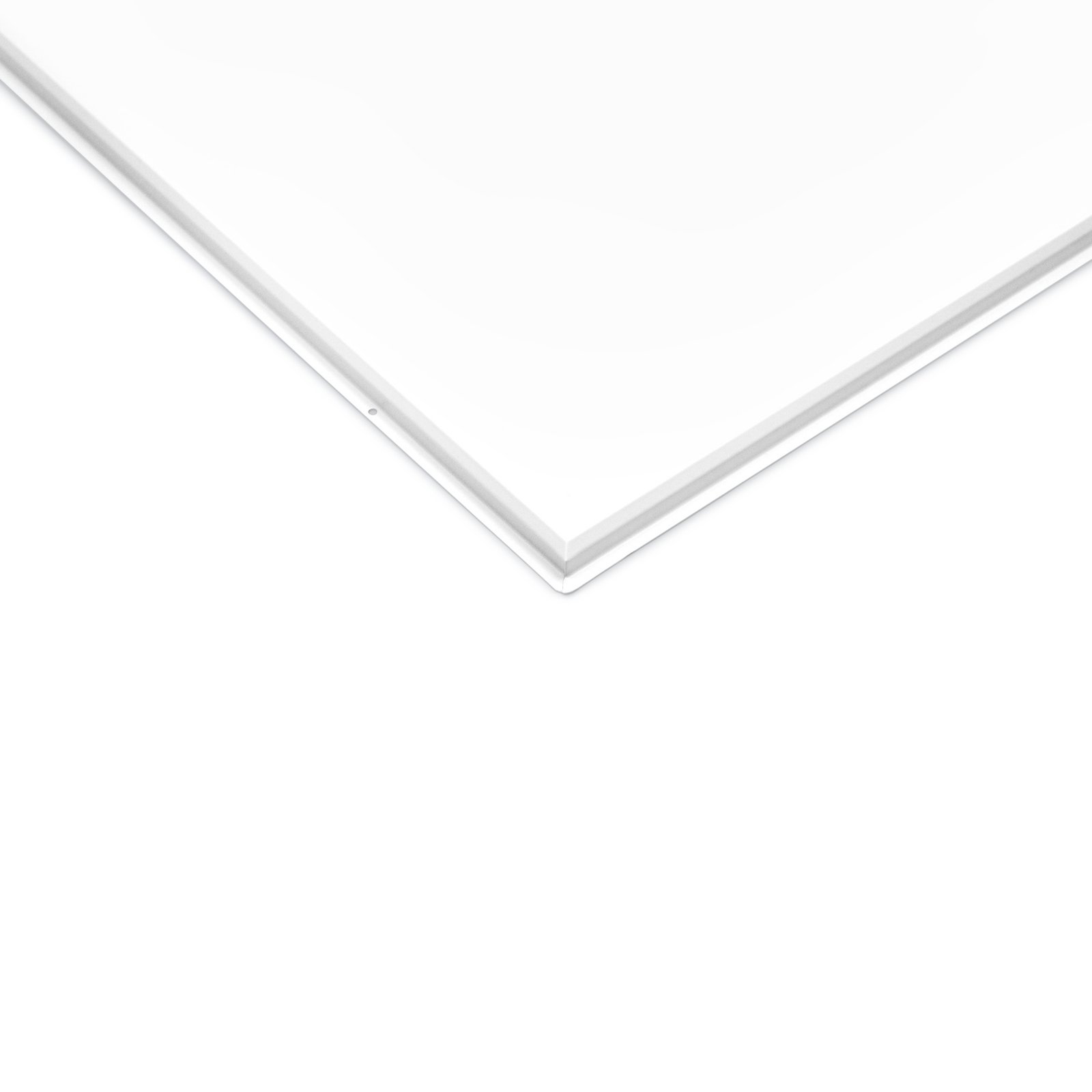

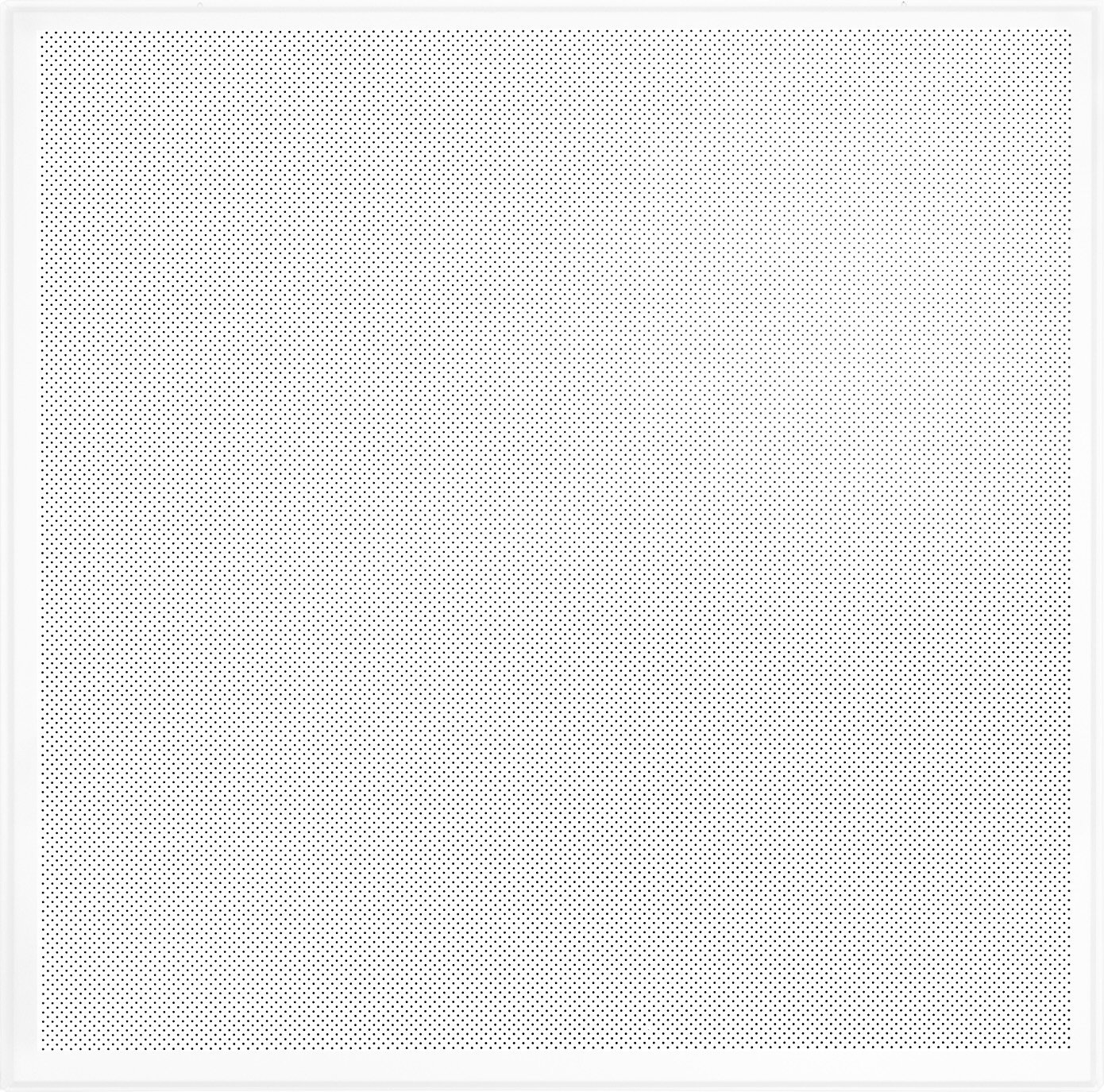

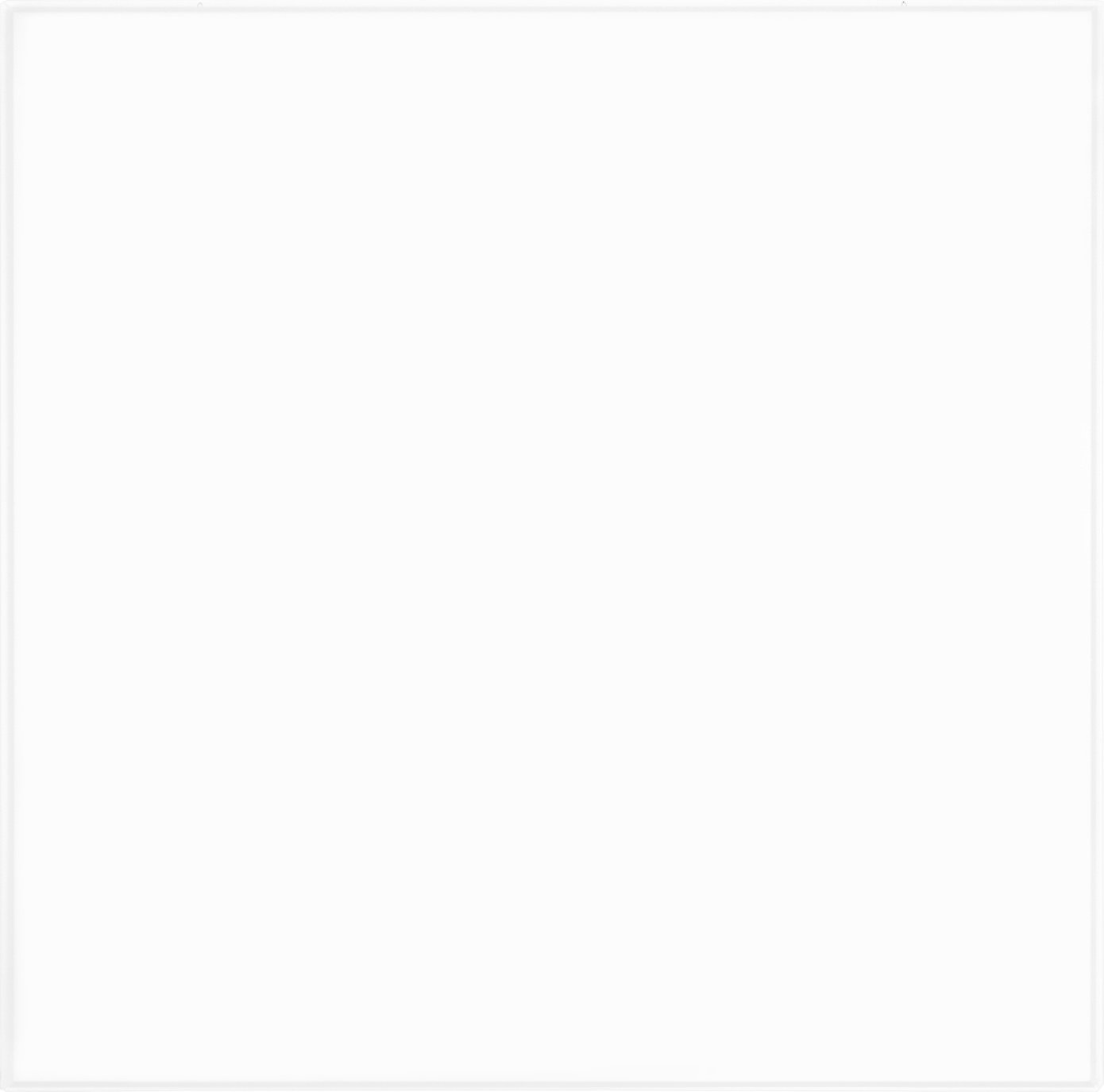

Diamond DB 15

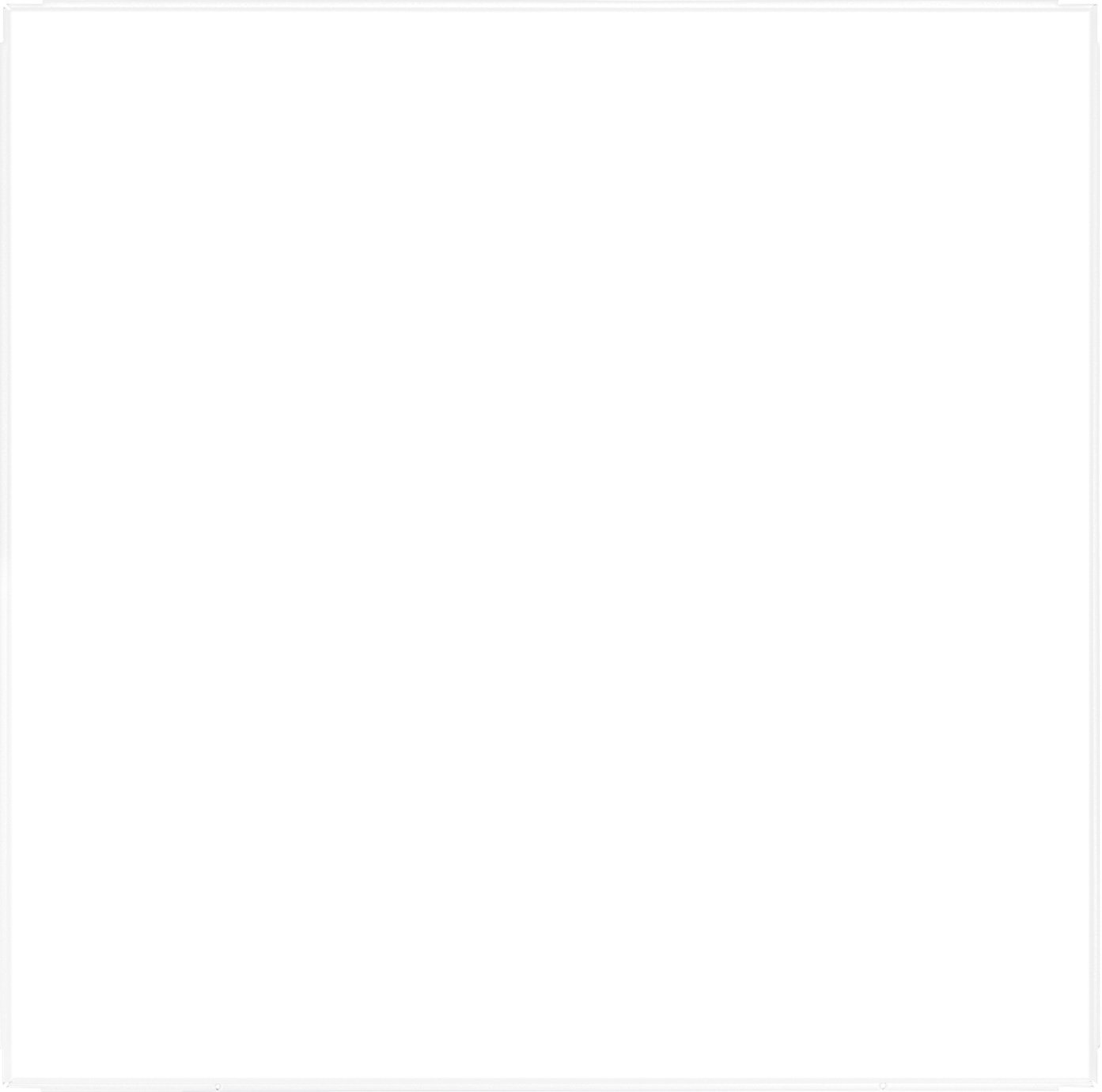

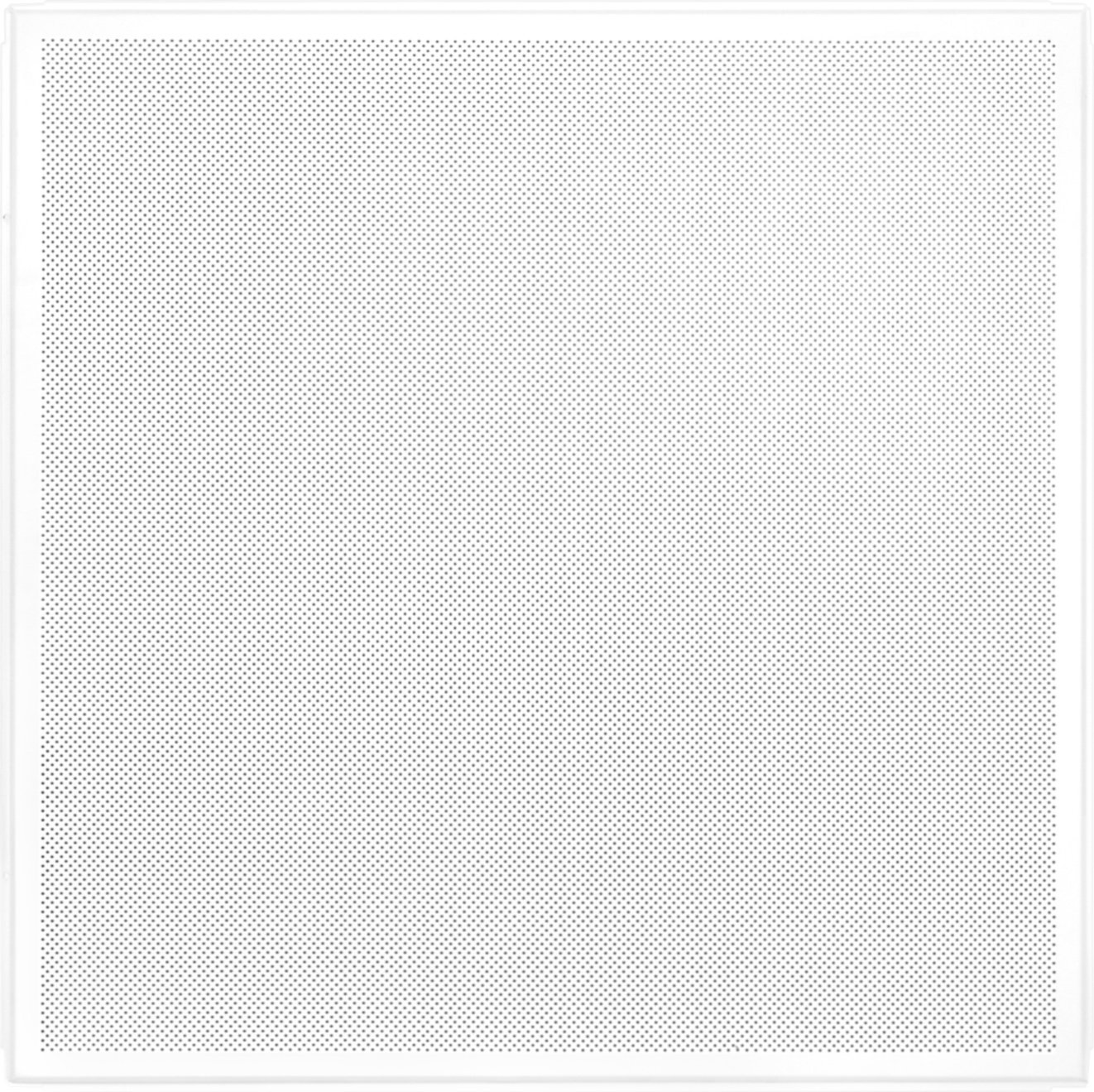

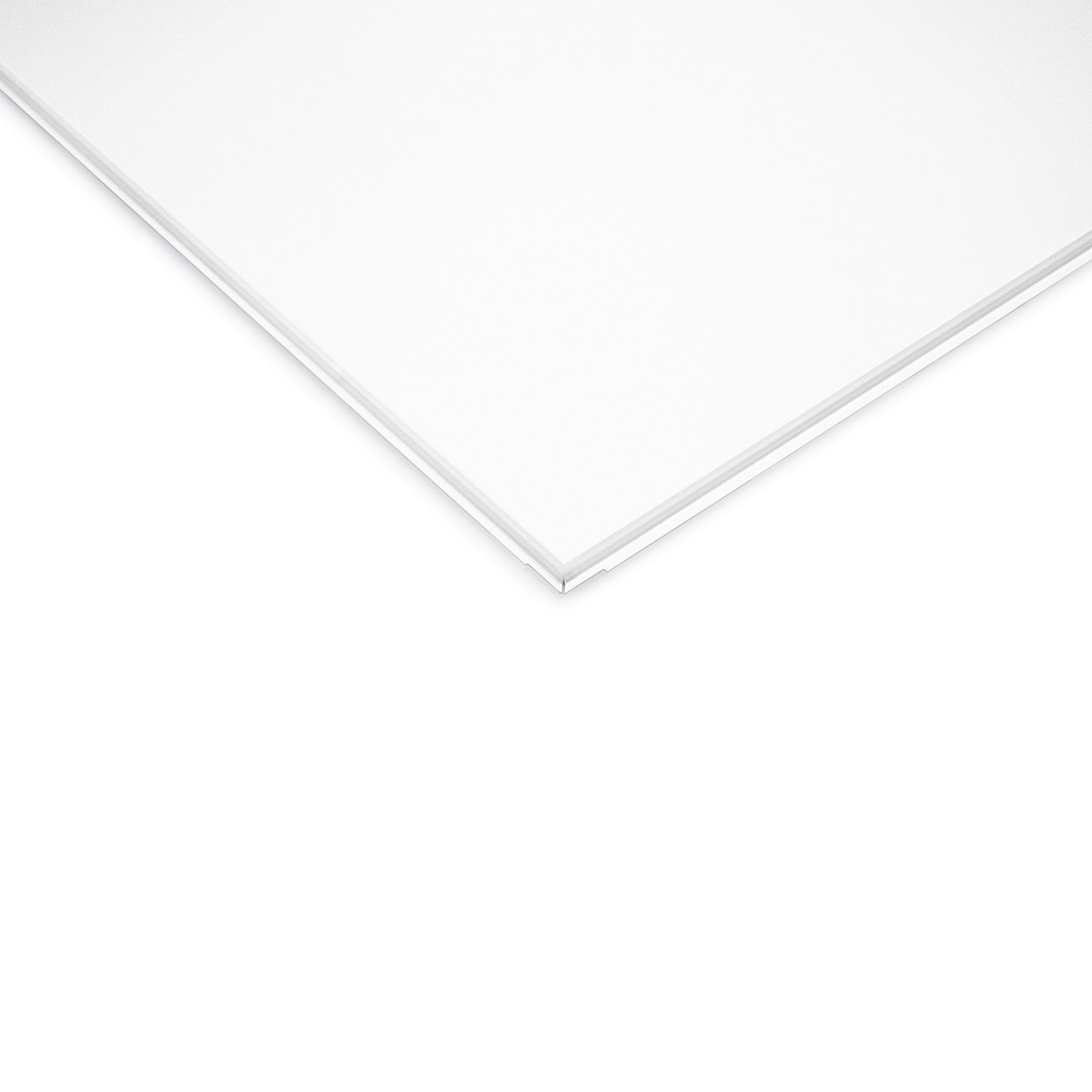

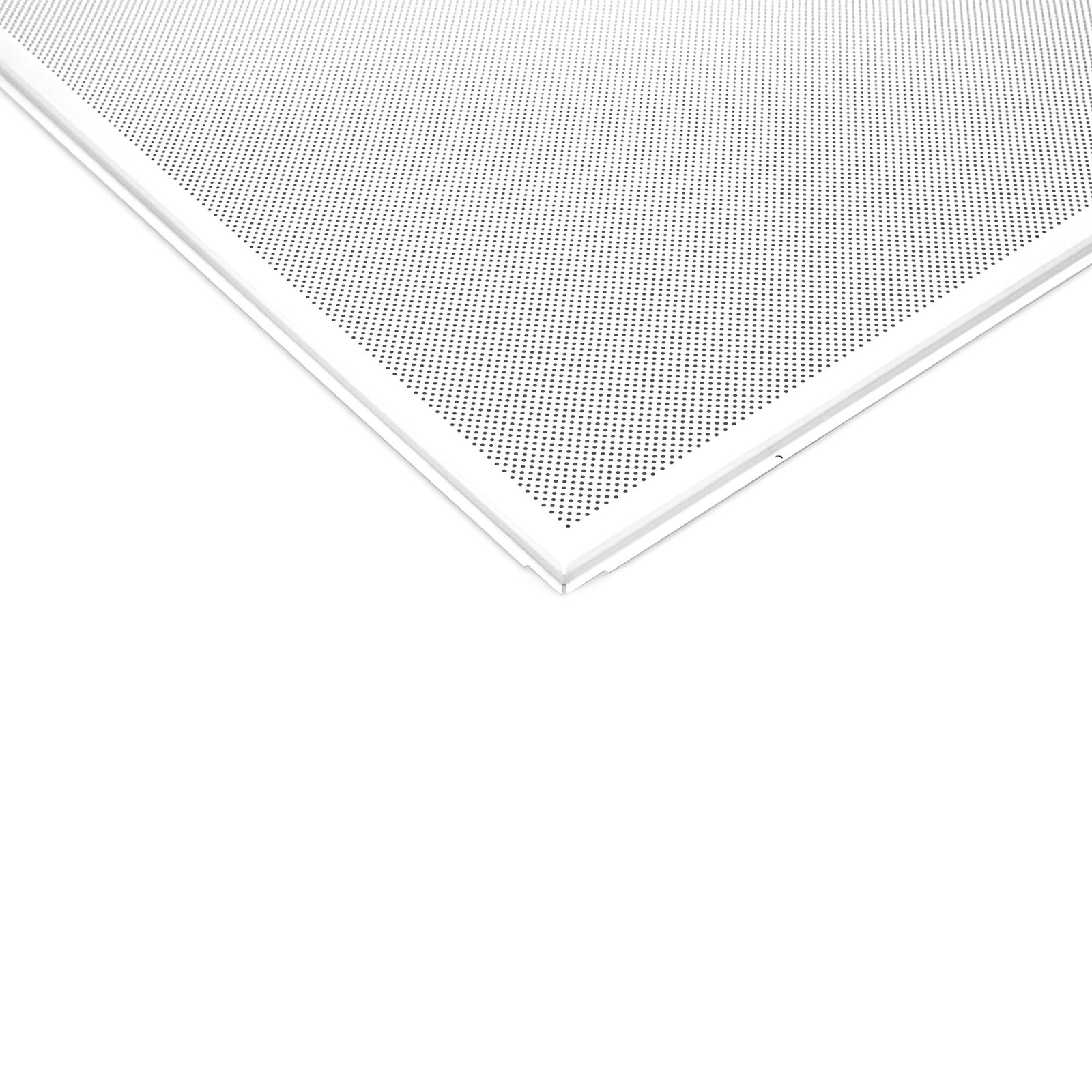

Diamond BV 15

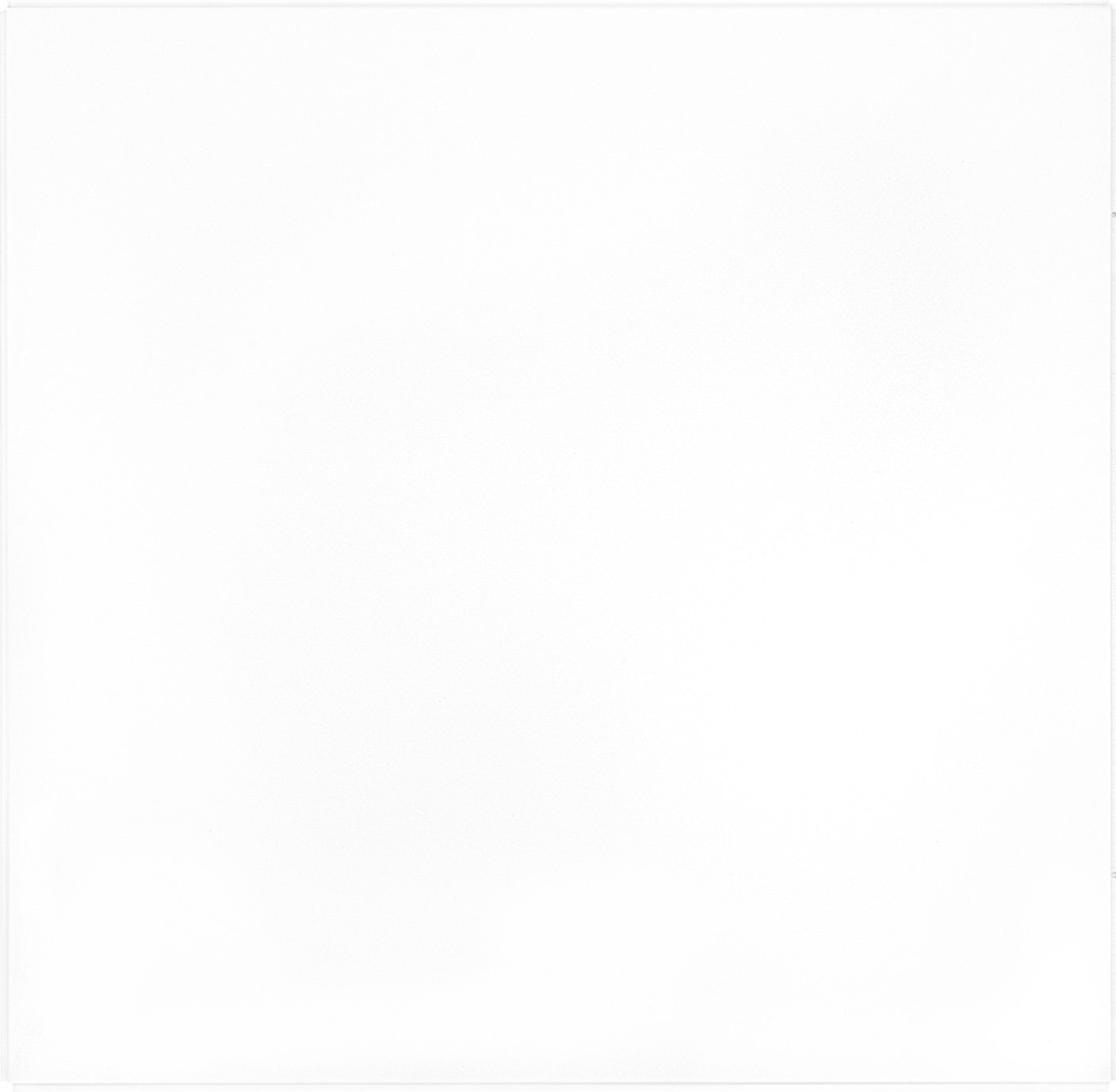

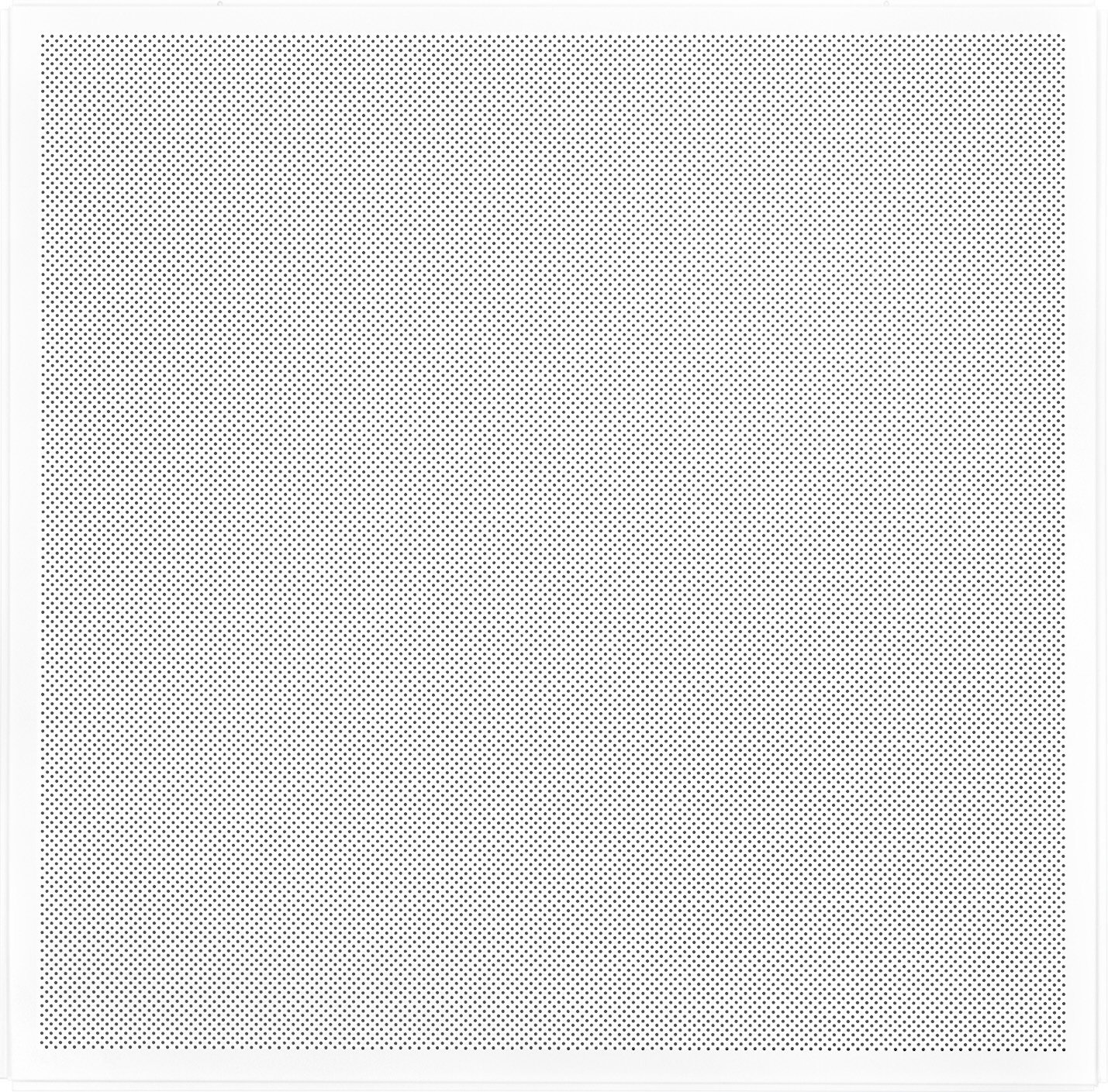

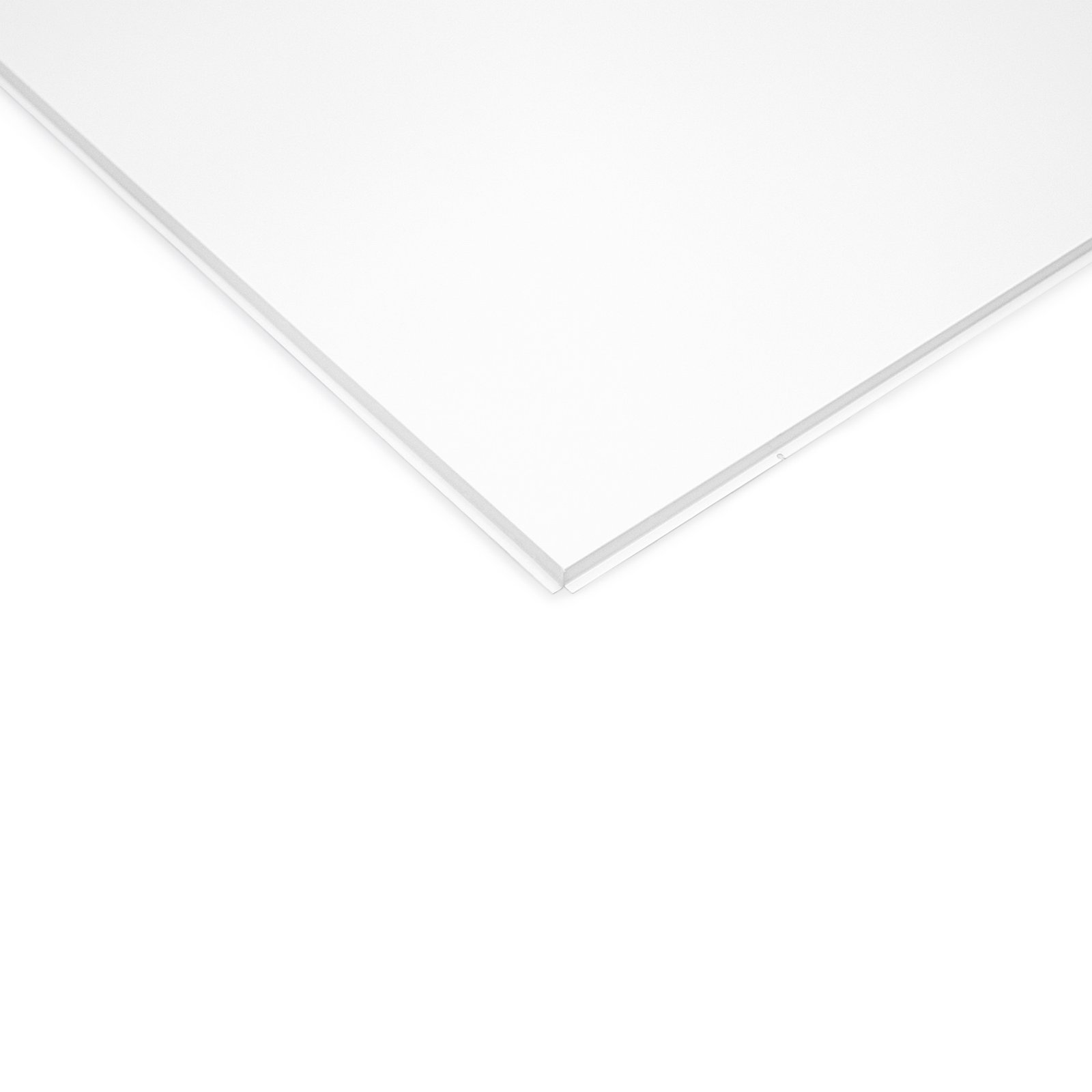

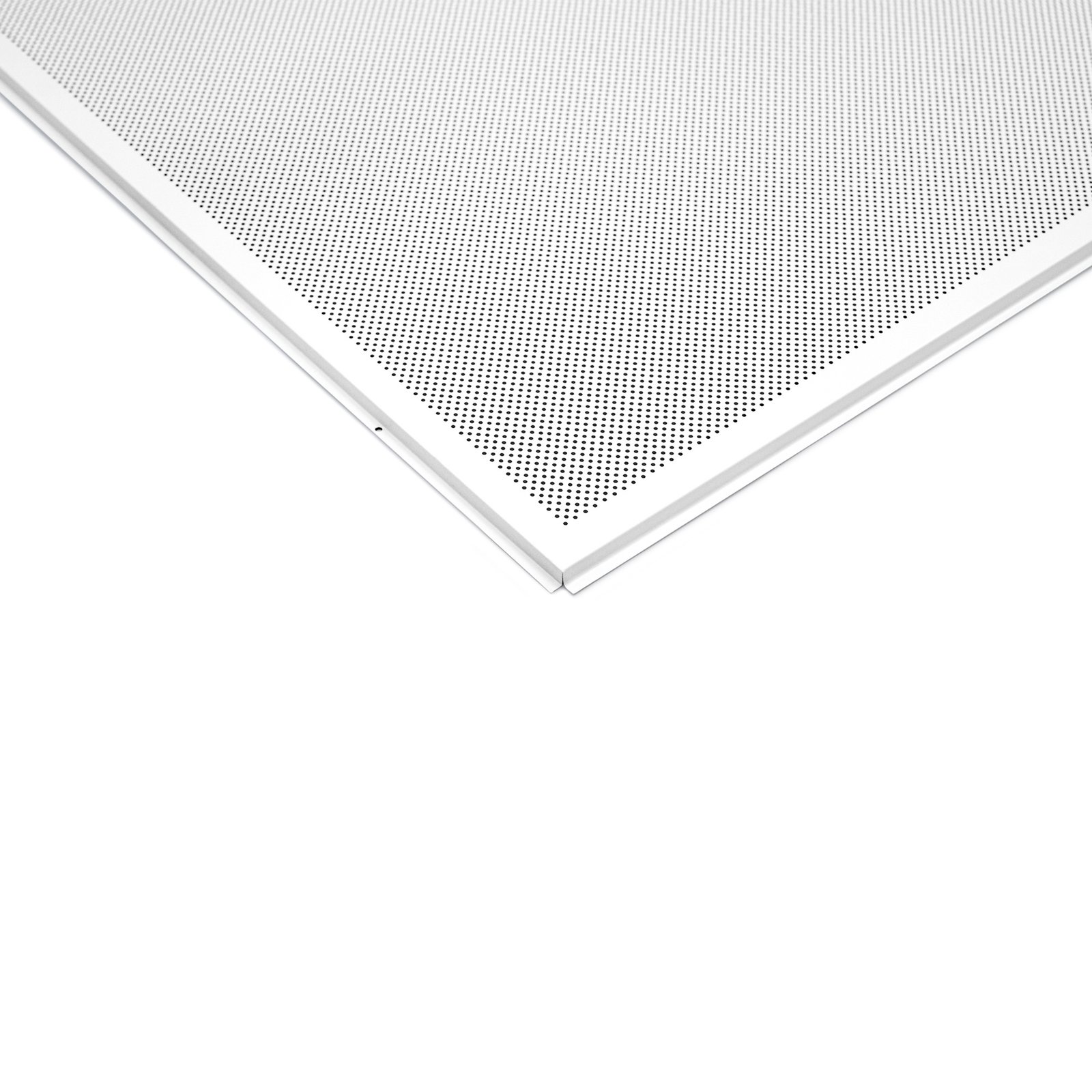

Diamond RA 15
Technical Specifications for
Diamond Lay In Metal Ceiling Tiles - Powder Coated
| Material | G.I. Coil |
| Galvanized | 120GSM/SQM |
| Electro Statically Polyester Powder Coated | 80 Microns Minimum |
| Color | Global White |
| Size | 595mm X 595mm |
| Thickness | 0.5 mm |
| Drop | 8mm 12mm |
| Edge Construction | Tegular/Micro Tegular/ Bevelled/Deep Bevelled |
| Light Reflectance | 0.85 – 0.90 |
| Humidity Resistance(RH) | 99% |
| Non Combustibility | BS 467 PART 6 &7 |
| NRC | ≥ 0.6 |
Lay In Metal Ceiling Tiles - Color Coated (PPGI)
DB
BV
RA
Technical Specifications for
Diamond Lay In Metal Ceiling Tiles - Color Coated
| Material | P.P.G.I. Coil |
| Galvanized | 120GSM/SQM |
| Color | RAL 9003, 9002, 9010 |
| Size | 595mm X 595mm |
| Thickness | 0.5 mm |
| Drop | 8mm 12mm |
| Edge Construction | Tegular / Micro Tegular / Bevelled / Deep Bevelled |
| Light Reflectance | 0.85 – 0.90 |
| Non Combustibility | BS 467 PART 6 & 7 |
| Humidity Resistance(RH) | 99% |
| NRC | ≥ 0.6 |
Lay-in metal ceiling tiles are precision-formed metal panels that drop into a T-grid framework. This system offers straightforward installation and effortless replacement, making it suitable for projects that require frequent access to electrical or HVAC services. The powder-coated surface ensures excellent surface flatness, smooth finish and long-lasting colour retention. Because the system is modular, individual tiles can be removed without disturbing the rest of the ceiling.
- Fast installation on standard grid ceiling systems
- High sound absorption
- Non-combustible and fire-resistant for safe performance in public spaces
- Minimal maintenance, with a wipe-clean surface
- Corrosion-resistant and suitable for humid interiors
- Long-lasting performance without sagging or deformation
- Cost-effective solution for large commercial facilities
This combination of performance and value makes lay-in tiles a preferred choice for architects, contractors and facility managers.
Lay-in metal ceiling panels are widely used in commercial interiors where easy access, hygiene and durability are critical.
Common application areas include:
- Airports and metro stations
- Corporate offices and conference rooms
- Hospitals, clinics and laboratories
- Shops, malls and retail environments
- Educational institutions
- Restaurants, auditoriums and hospitality spaces
The system is well-suited for spaces with frequent maintenance needs, exposed services or future expansion requirements.
- Visible T-grid suspension for quick installation and replacement
- Square and rectangular modules for design flexibility
- Improved sound control
- Custom RAL colour finishes for branded or premium interiors
- Lightweight panels that reduce structural load
- Scratch-resistant surface coating
The lay-in system provides a neat, uniform ceiling line with consistent grid spacing in both small and large rooms.

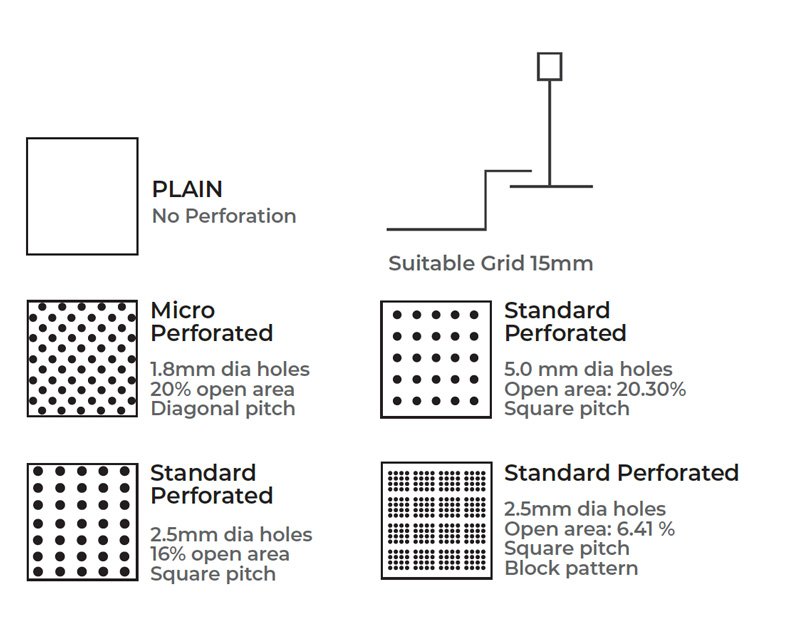

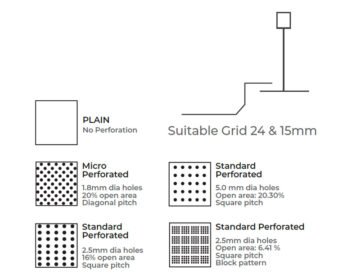

Lay-in ceiling tiles are placed directly onto standard 24/15 mm T-grids. Panels can be lifted out individually to access electrical wiring, fire-safety equipment or air-conditioning lines. Maintenance is minimal, as the powder-coated surface resists dust and stains. In high-humidity areas, metal tiles provide better longevity than gypsum or mineral boards.
- Reliable supply for large commercial projects
- Quality-controlled manufacturing with consistent flatness
- Technical drawings, samples and specification documents provided
- Support for architects and project consultants
Our ceiling systems are used across corporate developments, healthcare facilities, public infrastructure and premium retail interiors.
Frequently Asked Questions | Lay-In Metal Ceiling Tiles
Yes. Lay-in tiles with acoustic fleece help reduce reverberation in offices, waiting areas and meeting rooms.
The non-porous and wipe-clean surface makes them ideal for hygienic or sterile environments.
Yes. Individual tiles can be lifted without disturbing surrounding panels.
Standard white and metallic finishes are available, along with custom RAL shade options for branded interiors.
Request Pricing or Technical Specifications
For project estimates, samples or drawings, contact our technical team. We supply metal lay-in ceiling systems for corporate, retail, institutional and industrial developments across India.
Certifications & Compliance
Diamond Metal Ceiling Tiles are manufactured to meet CPWD specifications.
BIS Certified for quality, fire safety, acoustic control, humidity resistance (RH 99) and structural integrity.
Compliant with industry norms for quality, acoustic control, and structural integrity.
Pricing and Ordering
Looking for accessible metal ceilings with consistent finish and certified performance?
