Mineral Fiber Ceiling Tiles

Acoustic Comfort, Visual Appeal & Sustainable Performance

Mineral fiber ceiling tiles are a preferred solution for architects and builders seeking a combination of sound absorption, clean aesthetics, fire safety, and cost-effective performance. These tiles offer a suspended ceiling system that improves room acoustics, reduces noise levels, enhances light reflectance, and meets modern safety standards. Their balance of design flexibility and functional performance makes them an excellent choice for commercial spaces, offices, classrooms, hospitals, retail environments, and large public buildings. All products are certified, and compatible with standard GI T-grid suspension systems, offering high sound absorption and aesthetic adaptability.

Diamond Mineral Fiber Ceiling Tiles

Acoustic Silica Sand APT 002 20mm

Technical Specifications
MaterialWet Formed Mineral Fiber
SurfaceVinyl Latex
ColourWhite
Size595mm X 595mm
Thickness20mm
Edge ConstructionBevelled Micro
NRC≥0.80 (Certified)
Fire ResistanceBS 476: Part 4 & BS 476 Part 6 & 7 (certified)
Humidity Resistance(RH)99% (Certified)
Light Reflectance0.85 – 0.90(Certified)
Density260 - 300 kg/m3
AsbestosFree
Recycled Material50 to 60%

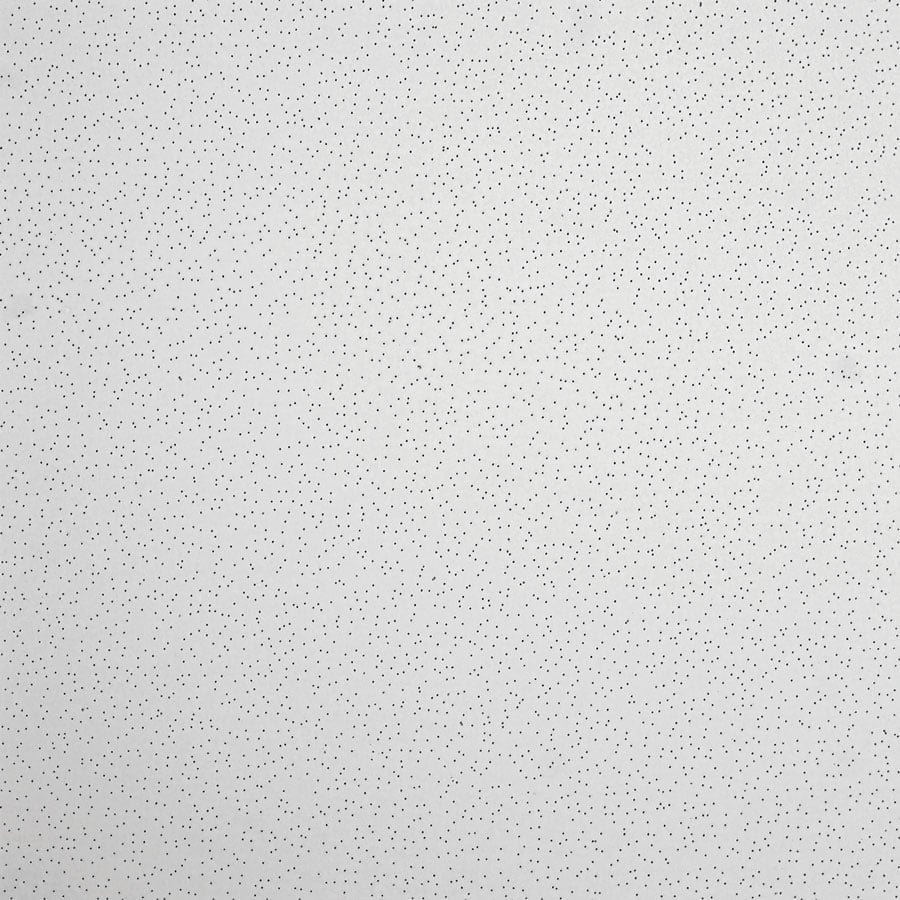

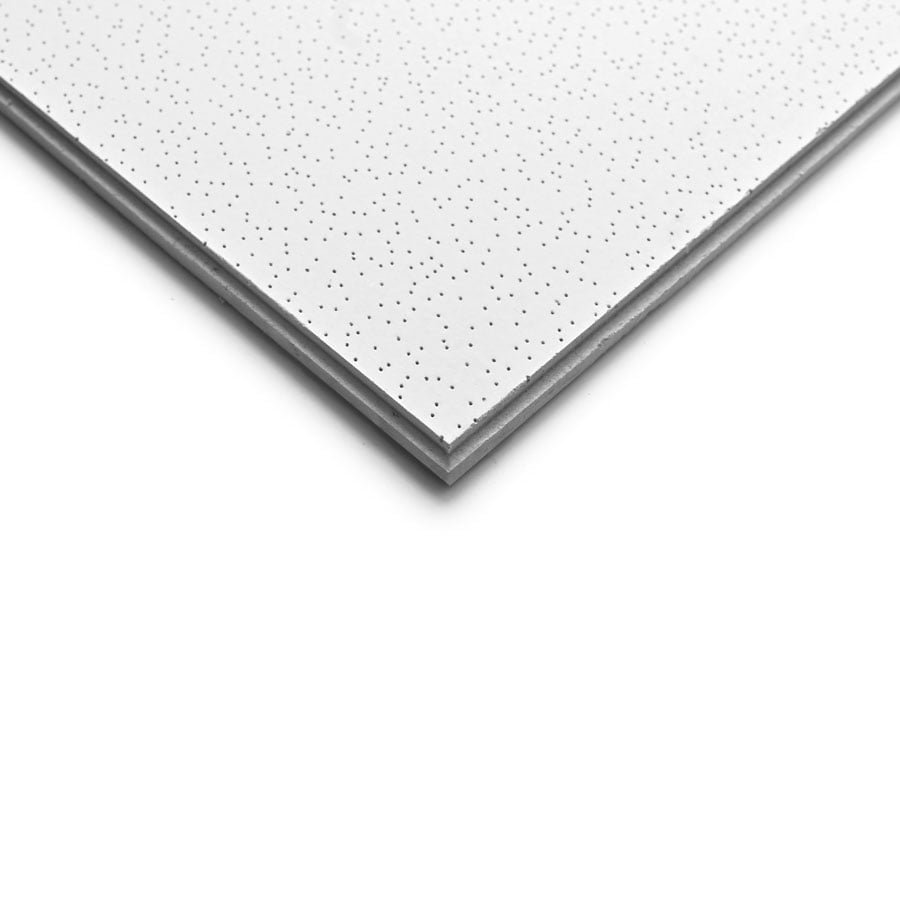

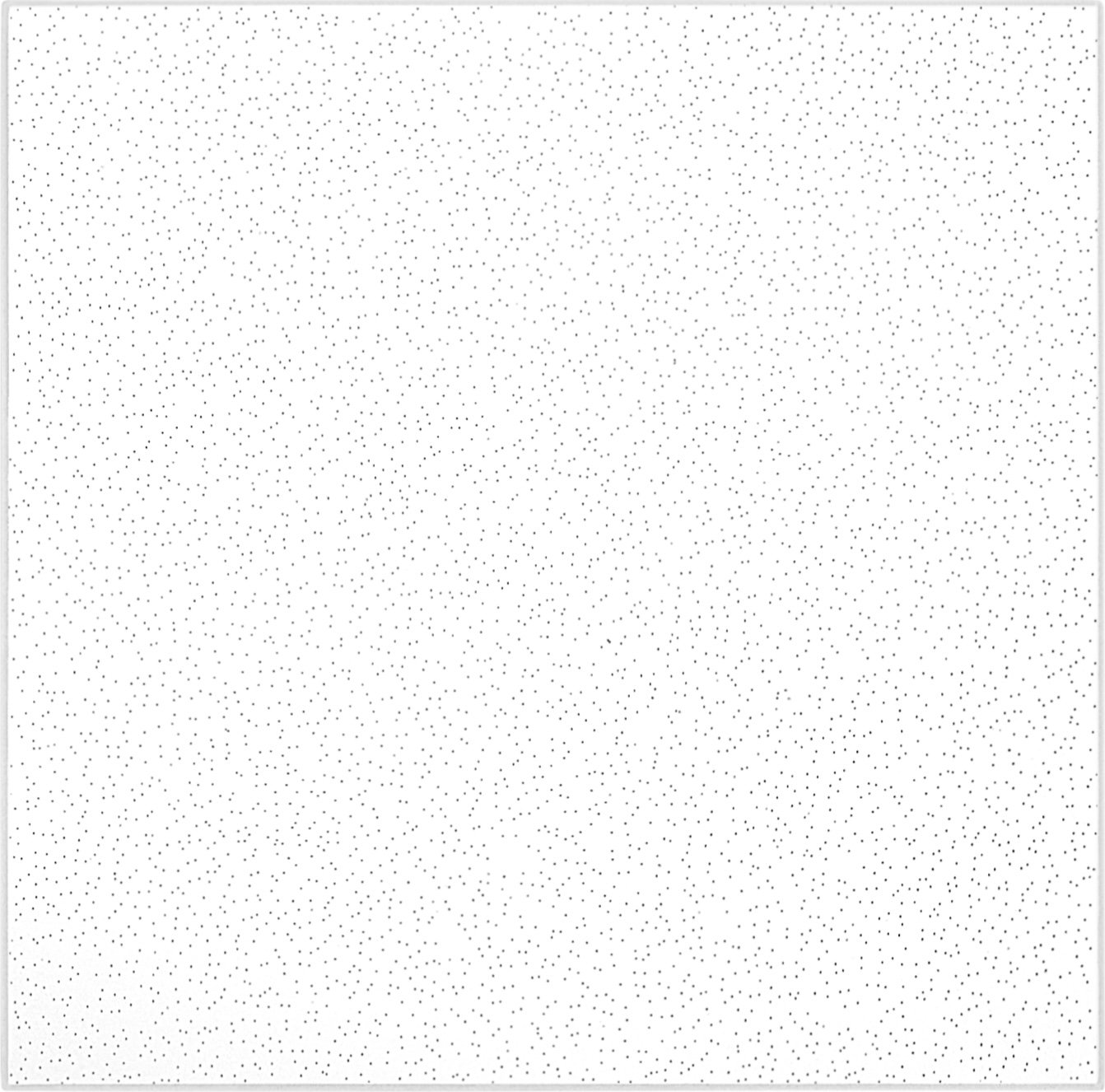

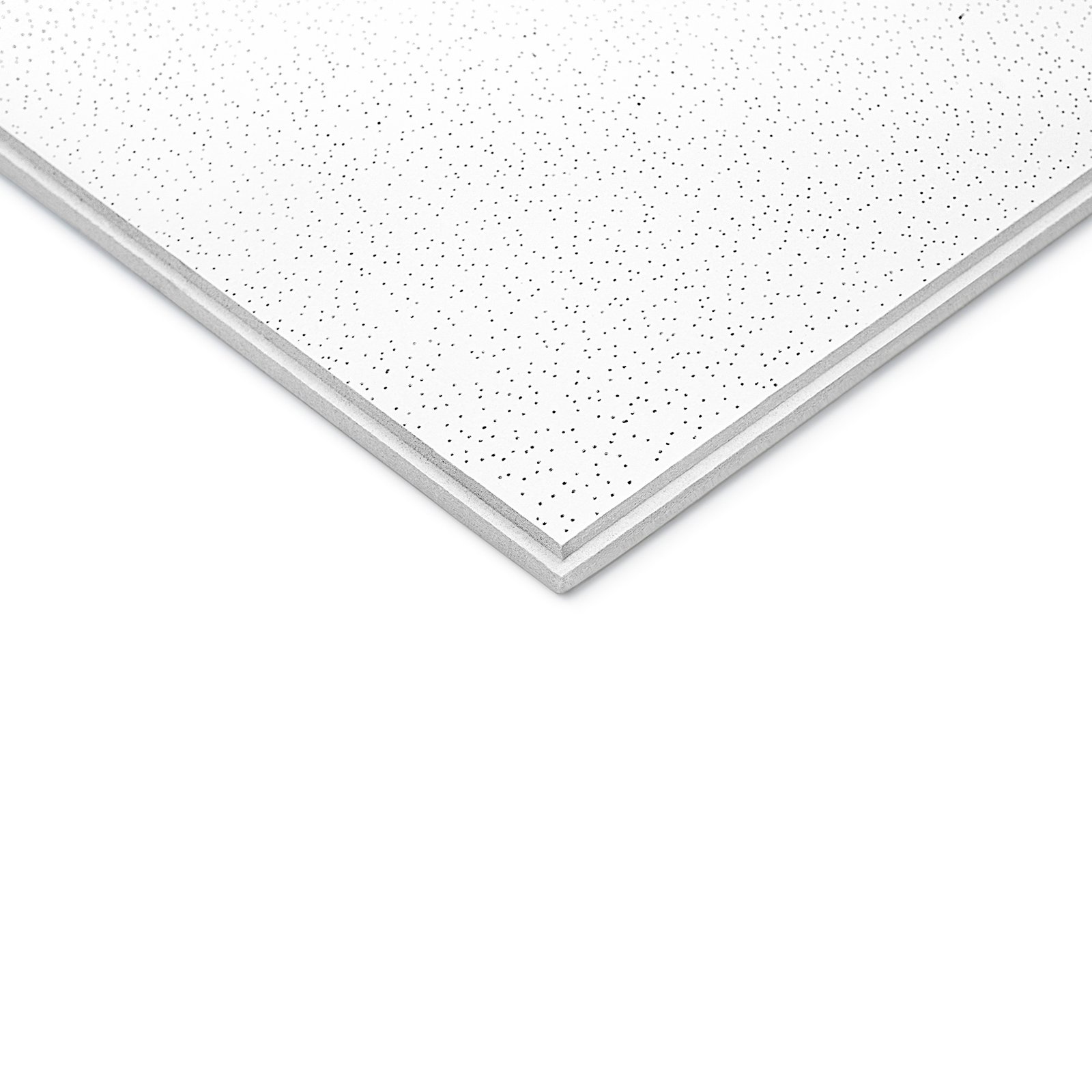

ACOUSTIC PINHOLE 20MM

Technical Specifications
MaterialWet Formed Mineral Fiber
SurfaceVinyl Latex
ColourWhite
Size595mm X 595mm
Thickness20mm
Edge ConstructionMicro
NRC≥0.80 (Certified)
Fire ResistanceBS 476: Part 4 & BS 476 Part 6 & 7 (certified)
Humidity Resistance(RH)99% (Certified)
Light Reflectance0.85 – 0.90(Certified)
Density260 - 300 kg/m3
AsbestosFree
Recycled Material50 to 60%

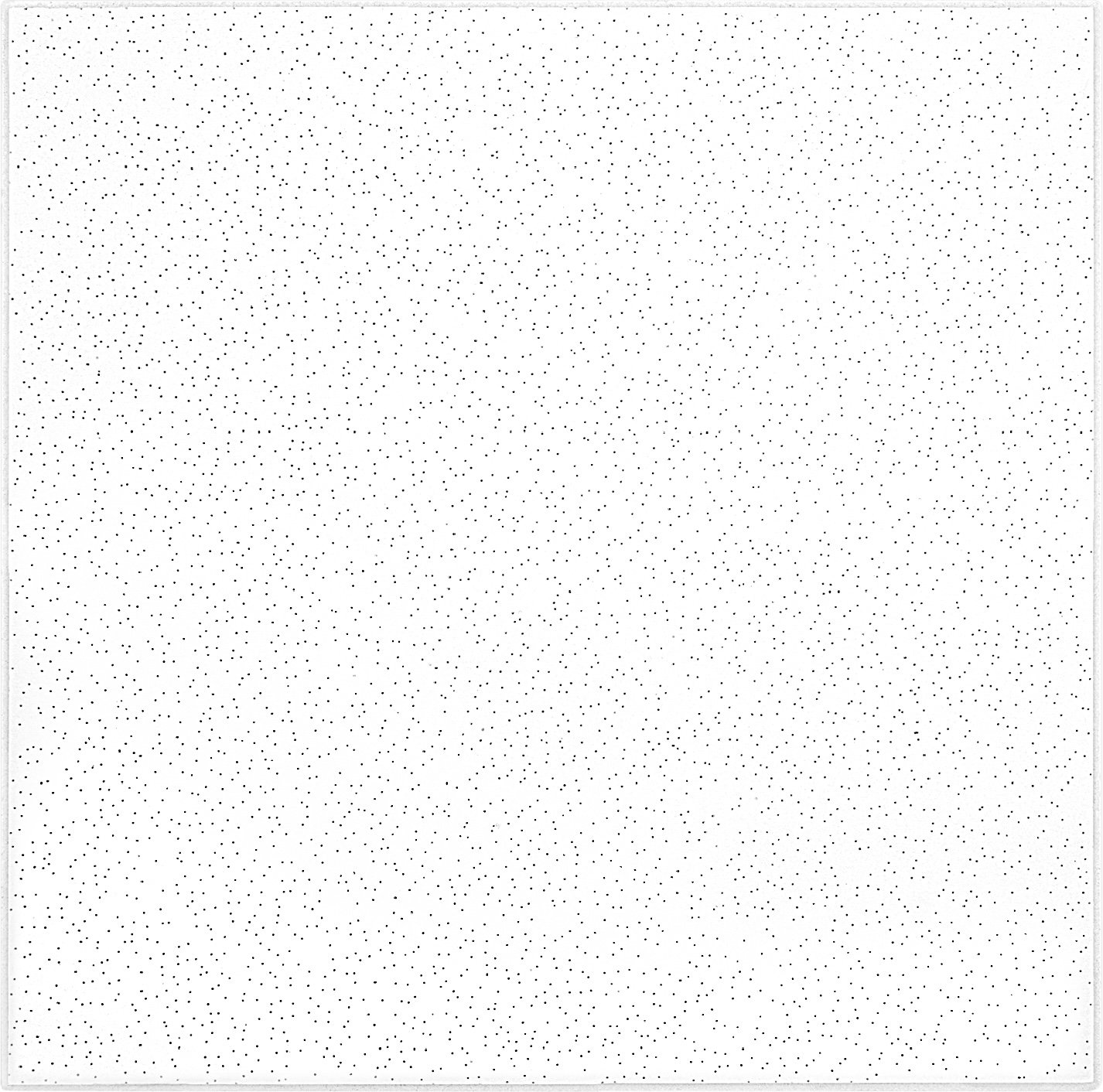

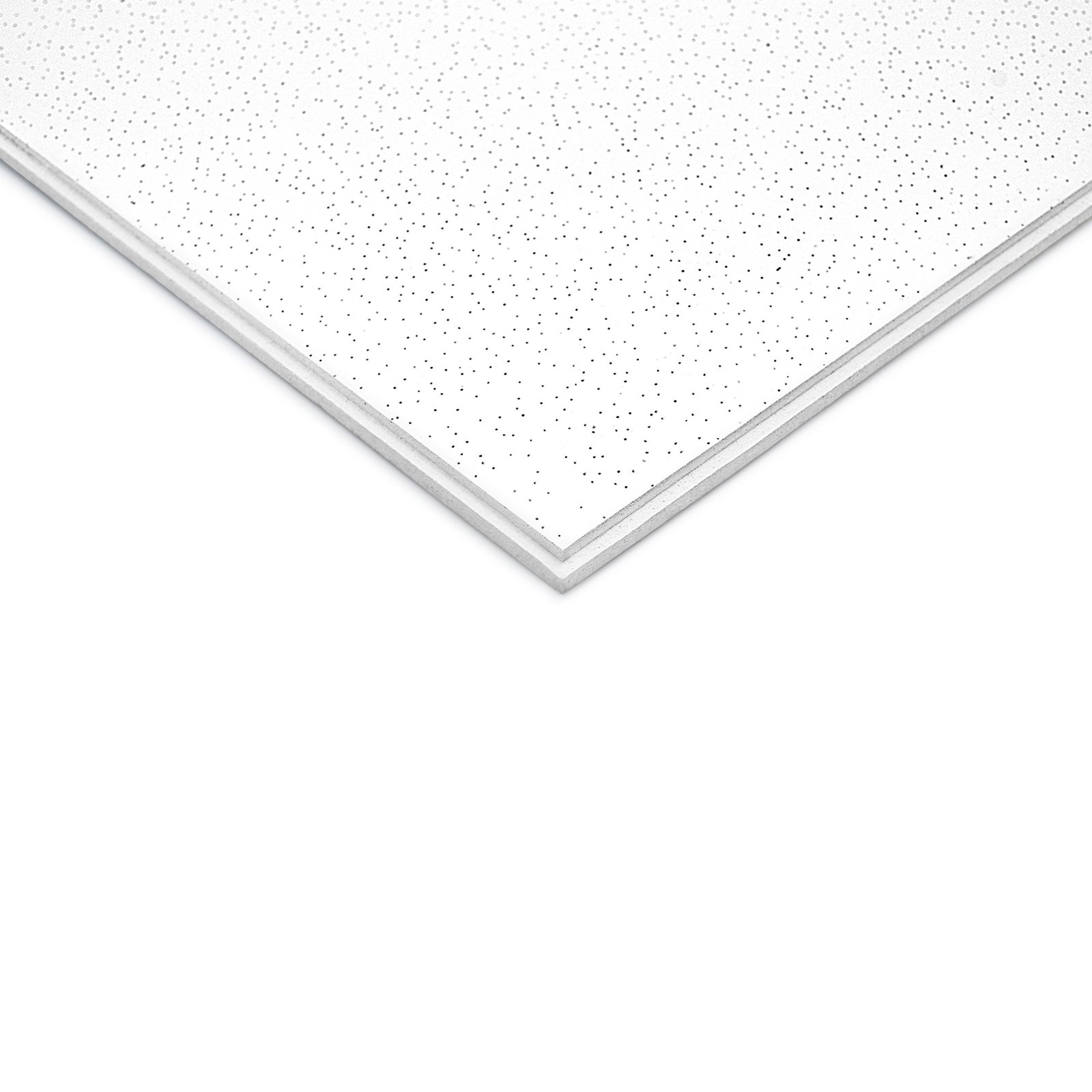

ACOUSTIC PINHOLE 16MM

Technical Specifications
MaterialWet Formed Mineral Fiber
SurfaceVinyl Latex
ColourWhite
Size595mm X 595mm
Thickness16mm
Edge ConstructionMicro
NRC≥0.80 (Certified)
Fire ResistanceBS 476: Part 4 & BS 476 Part 6 & 7 (certified)
Humidity Resistance(RH)99% (Certified)
Light Reflectance0.85 – 0.90(Certified)
Density260 - 300 kg/m3
AsbestosFree
Recycled Material50 to 60%

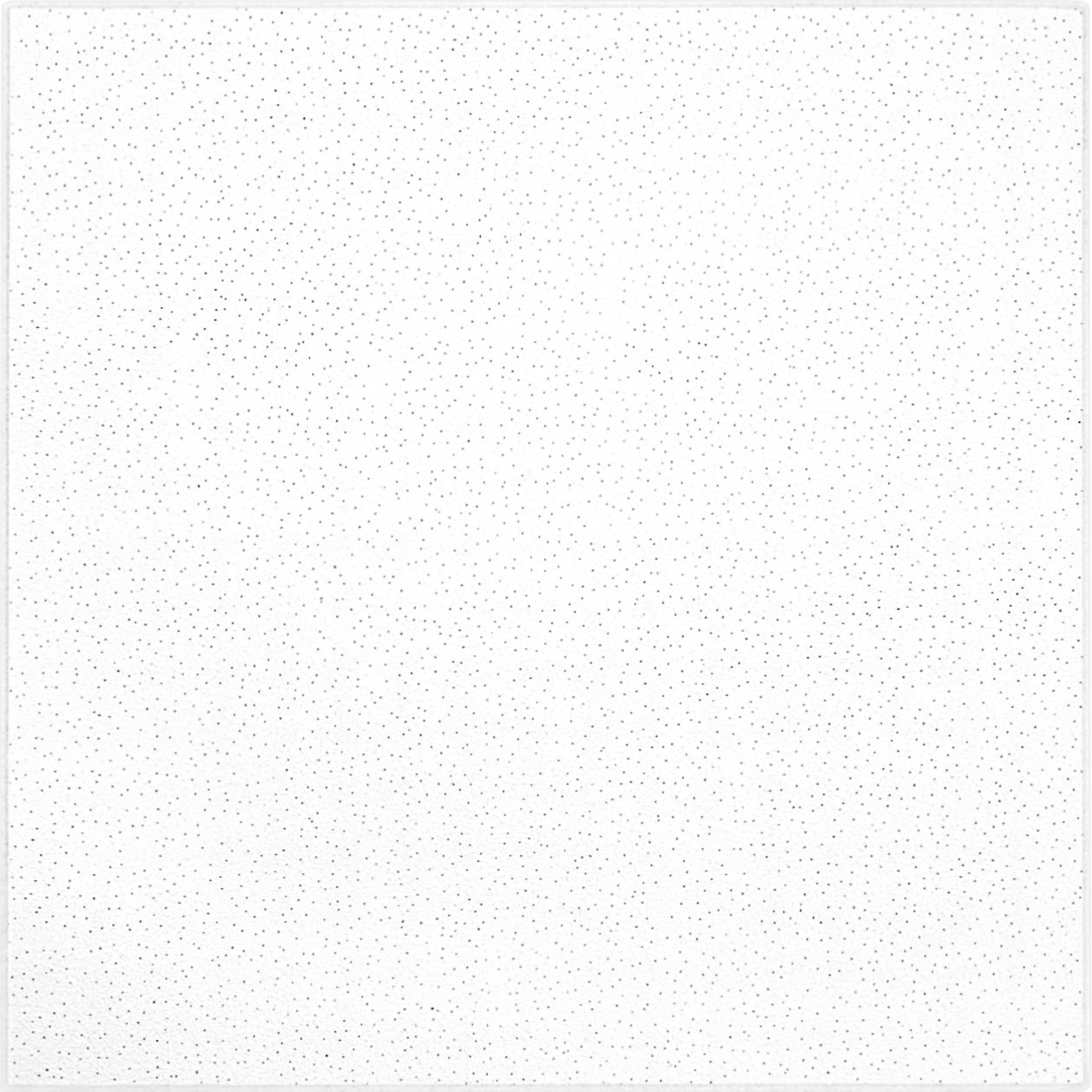

ACOUSTIC SILICA SAND APT 002 15MM

ColorWhite
Size595mm X 595mm
Thickness15mm
Edge ConstructionSquare / Tegular / Micro
NRC≥0.60 (Certified)
Fire ResistanceBS-476-4:1970 (Certified)
Humidity Resistance(RH)95% (Certified)
Light Reflectance0.80 – 0.85(Certified)

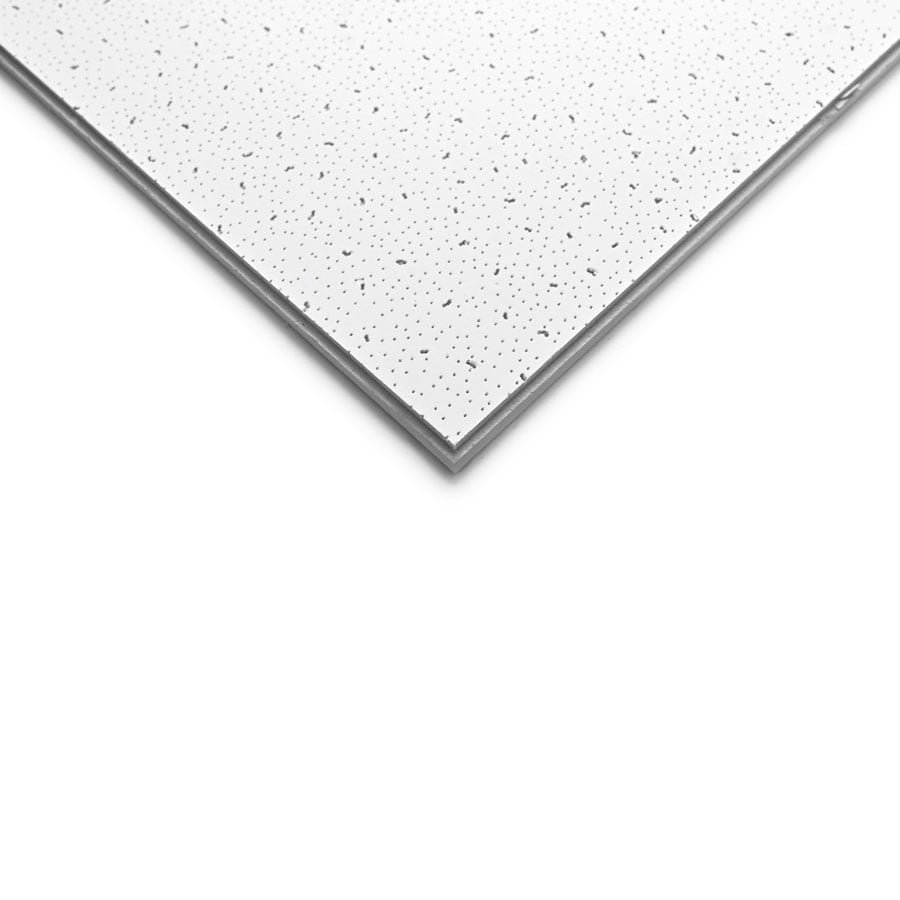

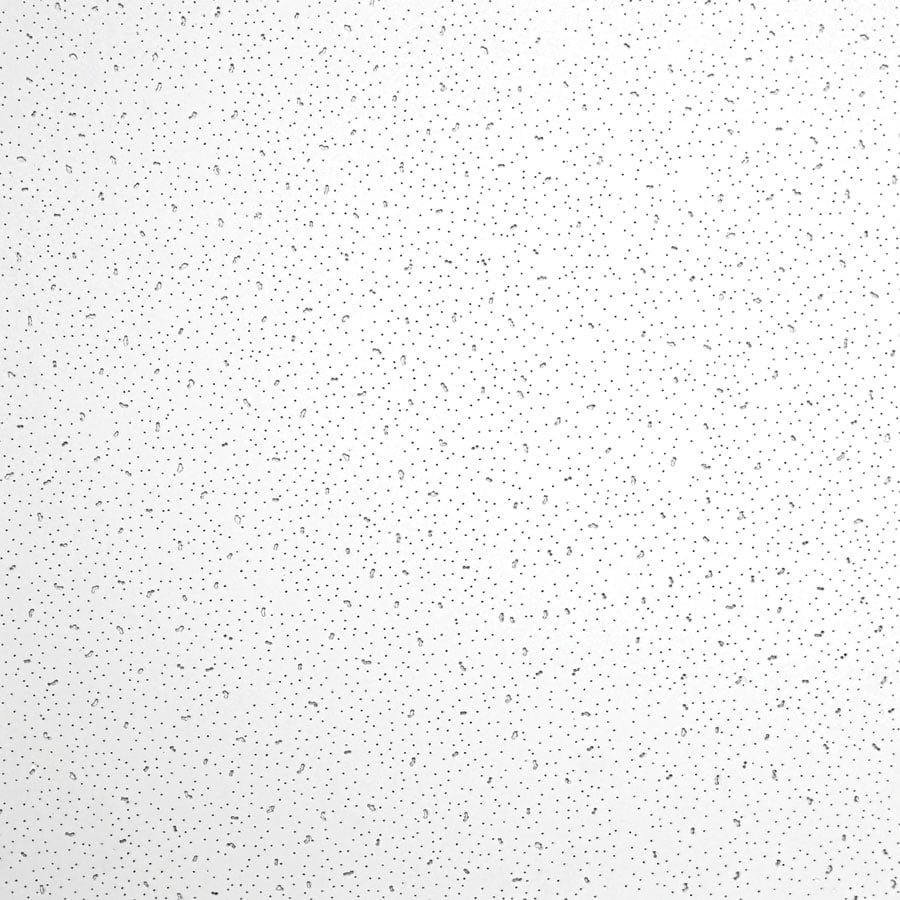

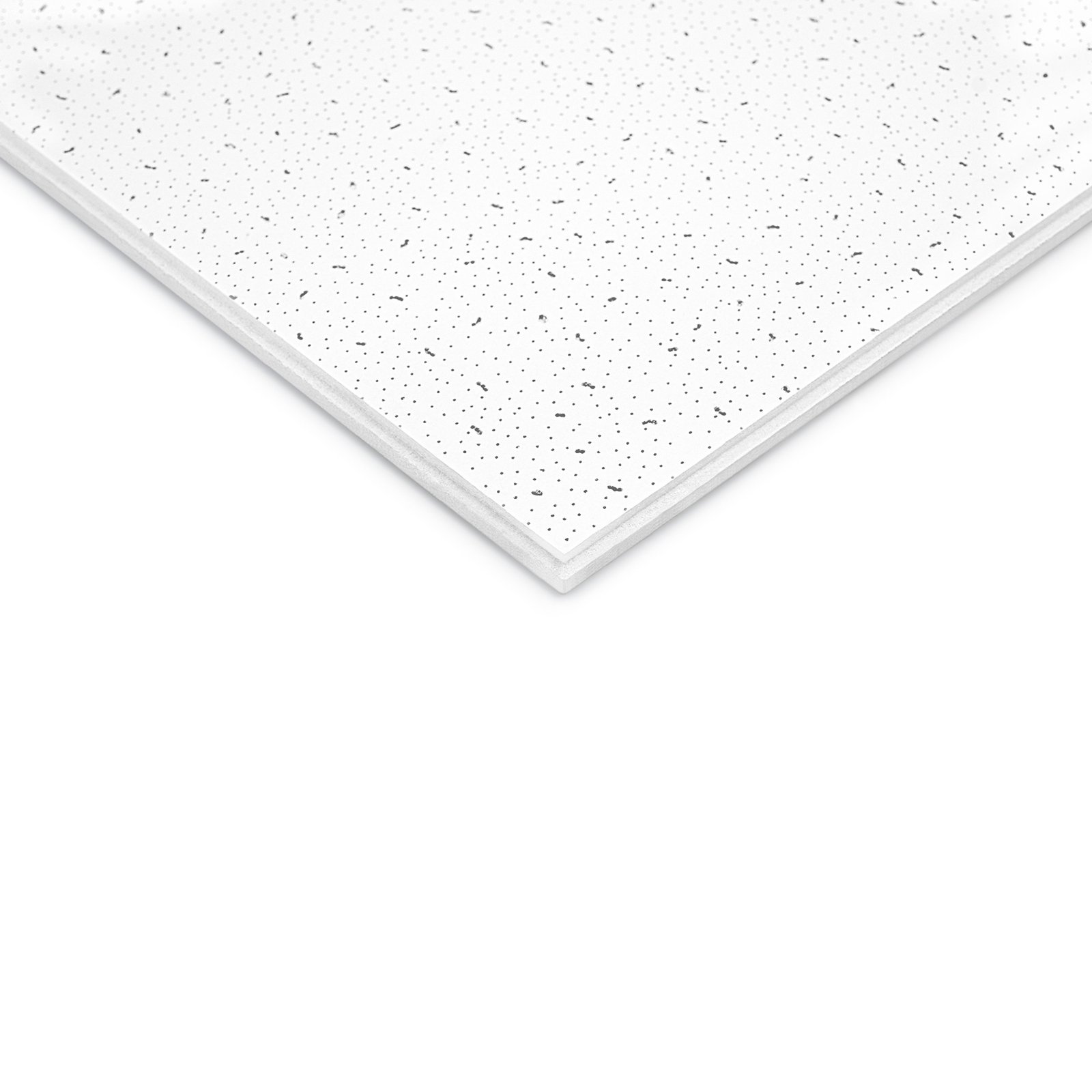

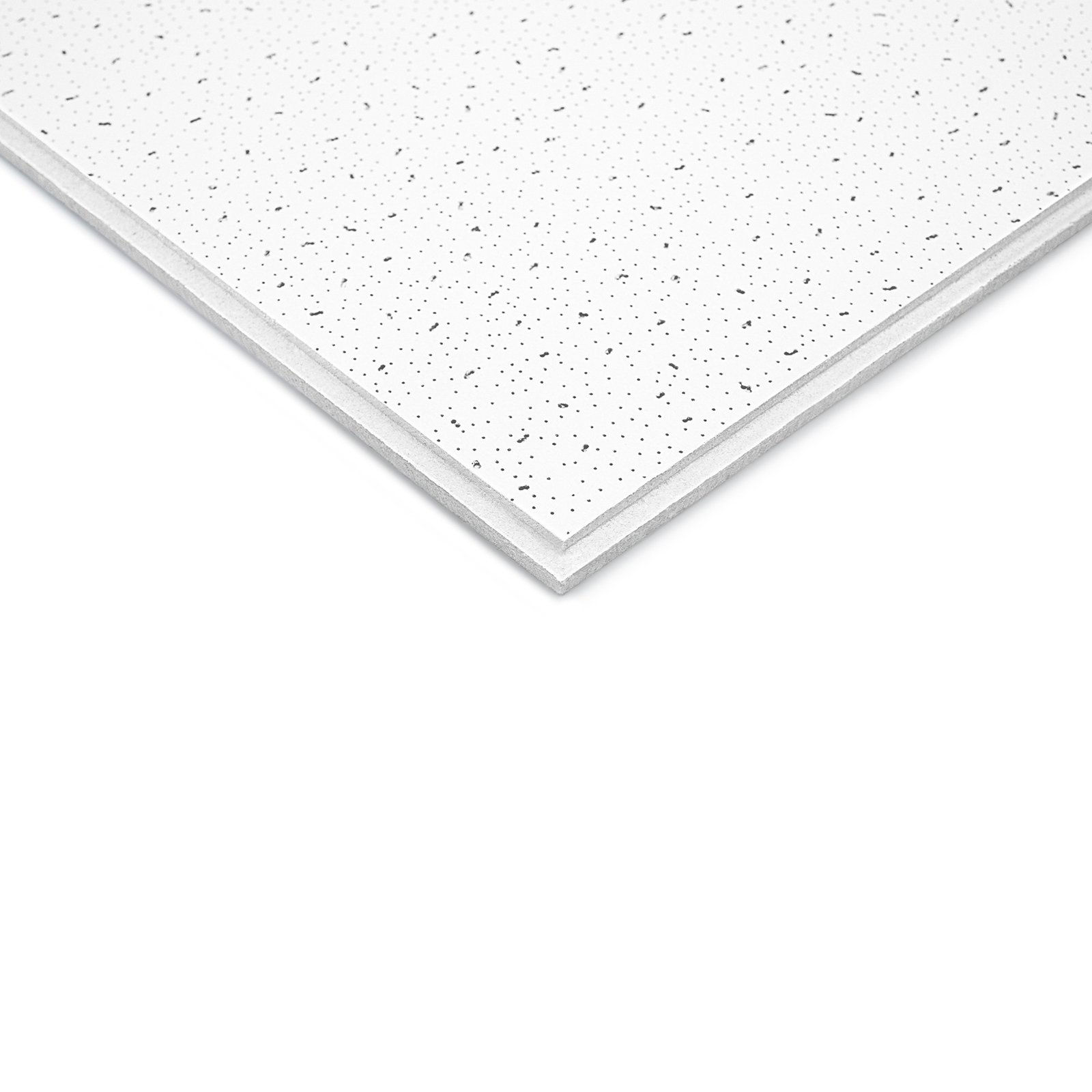

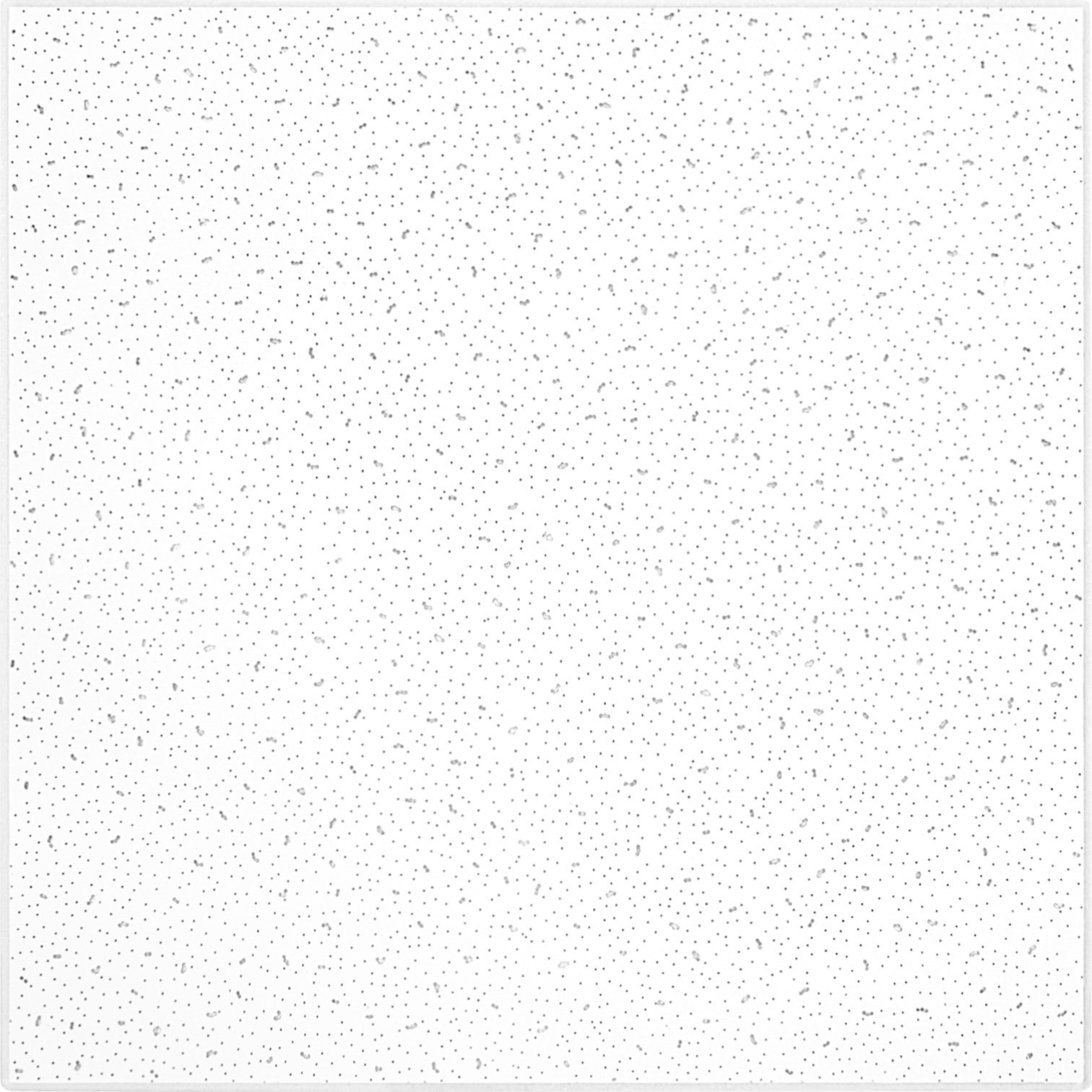

ACOUSTIC FISSURE 15MM

Square

Tegular

Micro

Technical Specifications
MaterialWet Formed Mineral Fiber
SurfaceVinyl Latex
ColourWhite
Size595mm X 595mm
Thickness15mm
Edge ConstructionSquare/Tegular/Micro
NRC>0.60
Fire ResistanceBS 476: Part 4 & BS 476 Part 6 & 7 (certified)
Humidity Resistance(RH)95% (Certified)
Light Reflectance0.85 – 0.90(Certified)
Density260 - 300 kg/m3
AsbestosFree
Recycled Material50 to 60%

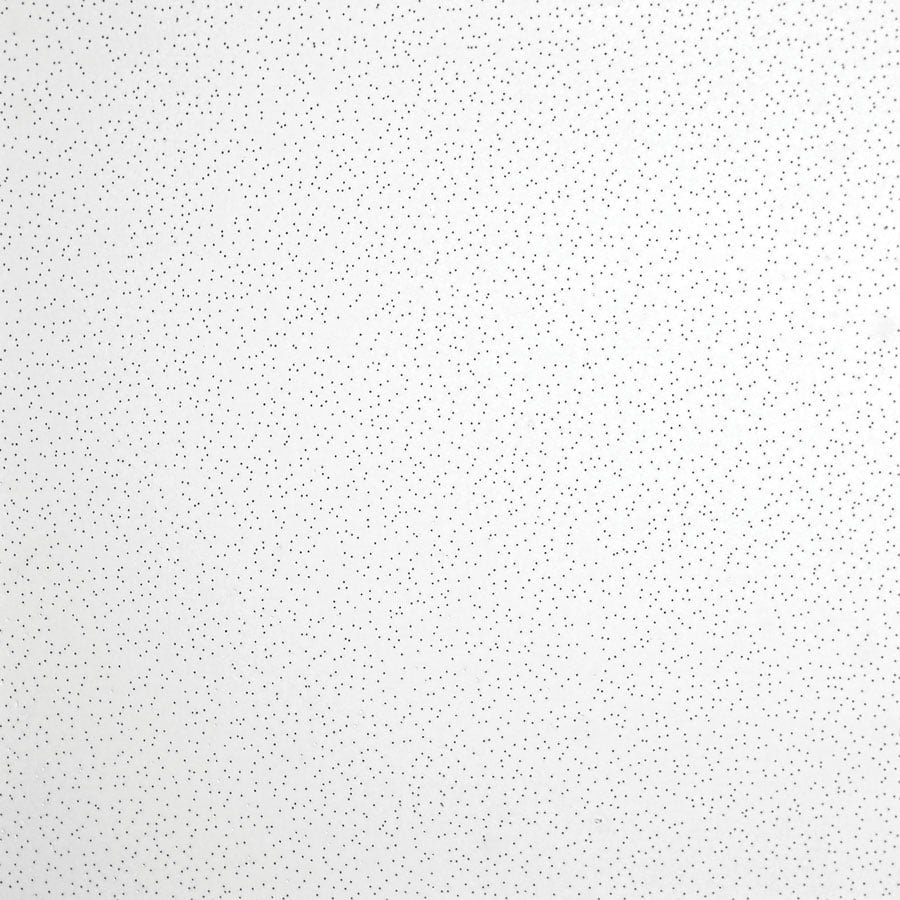

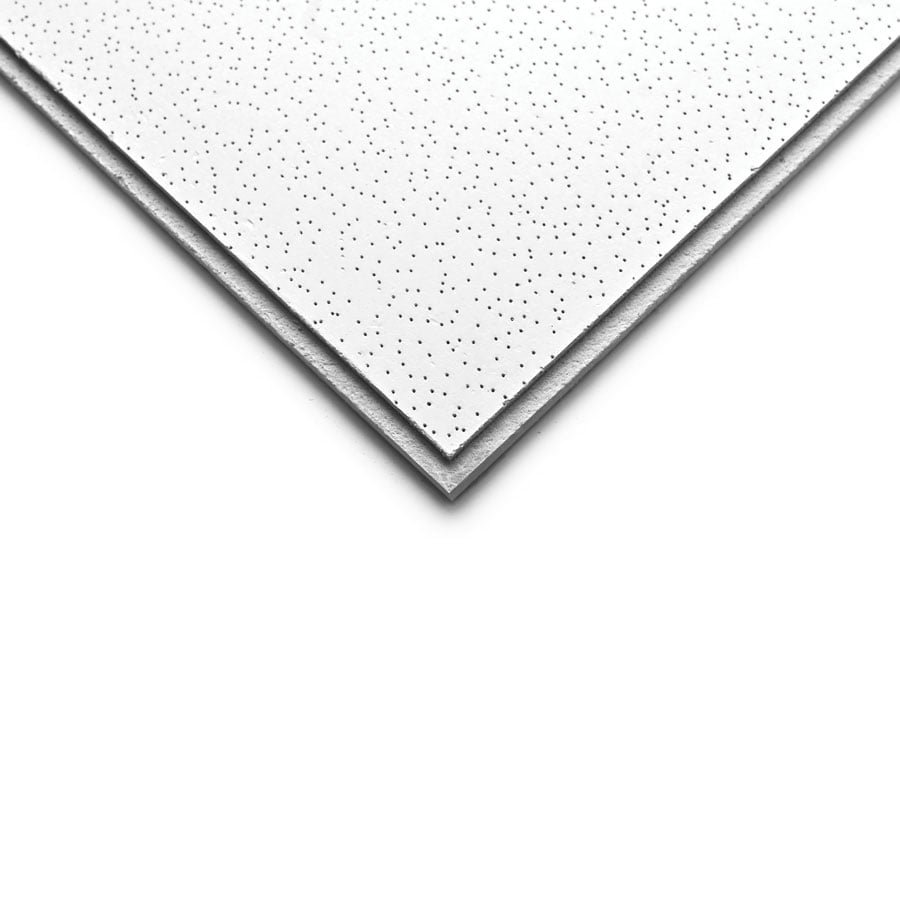

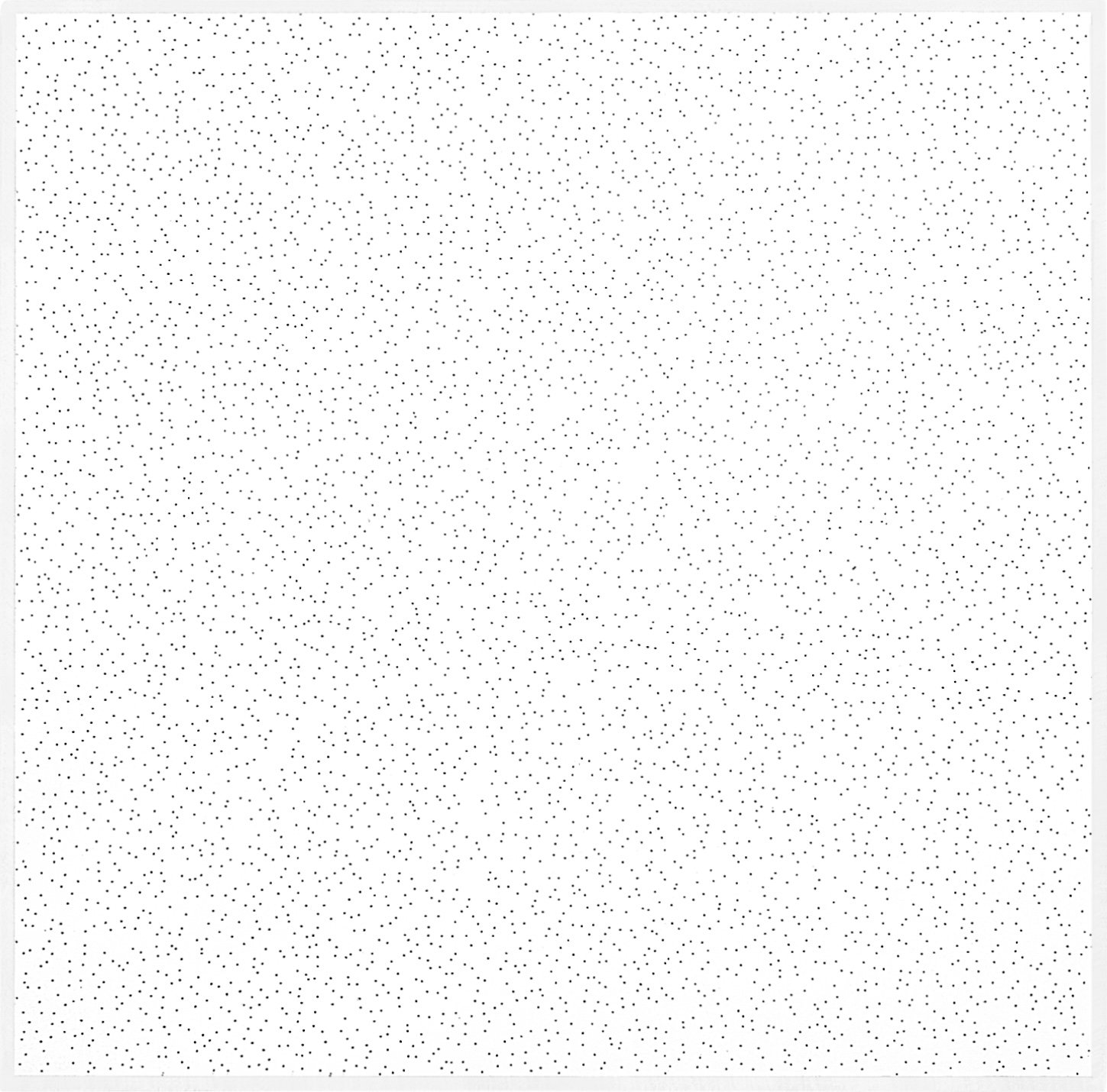

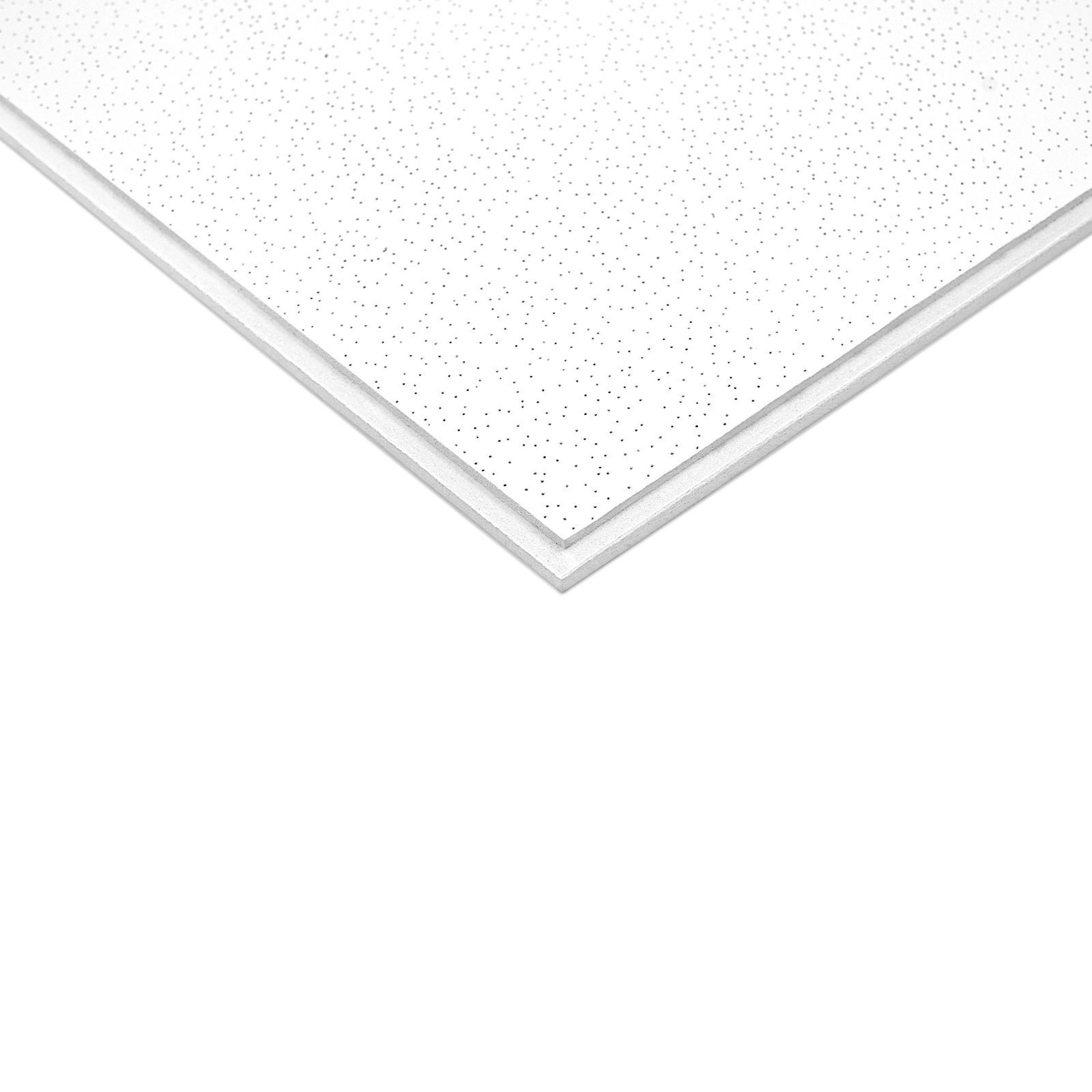

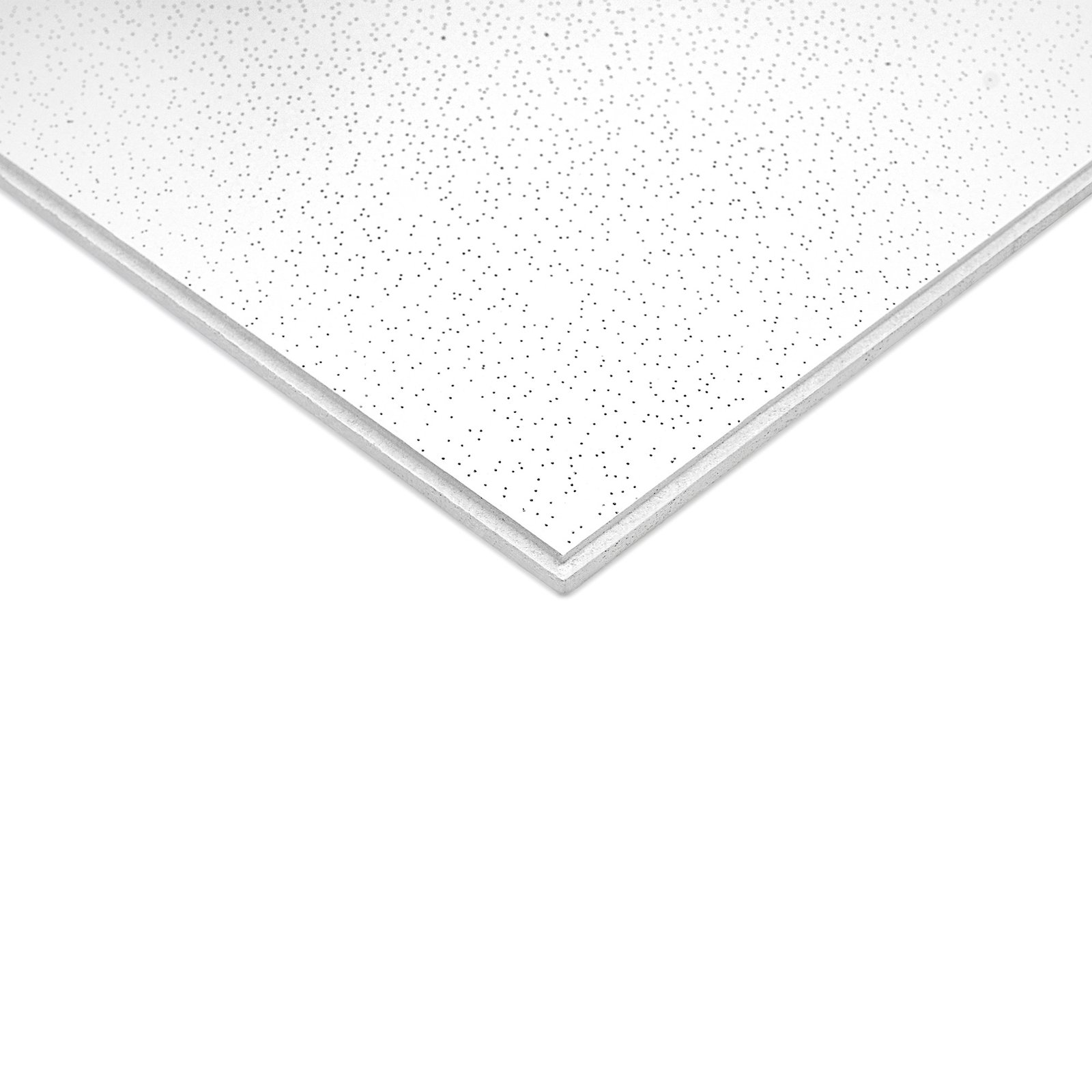

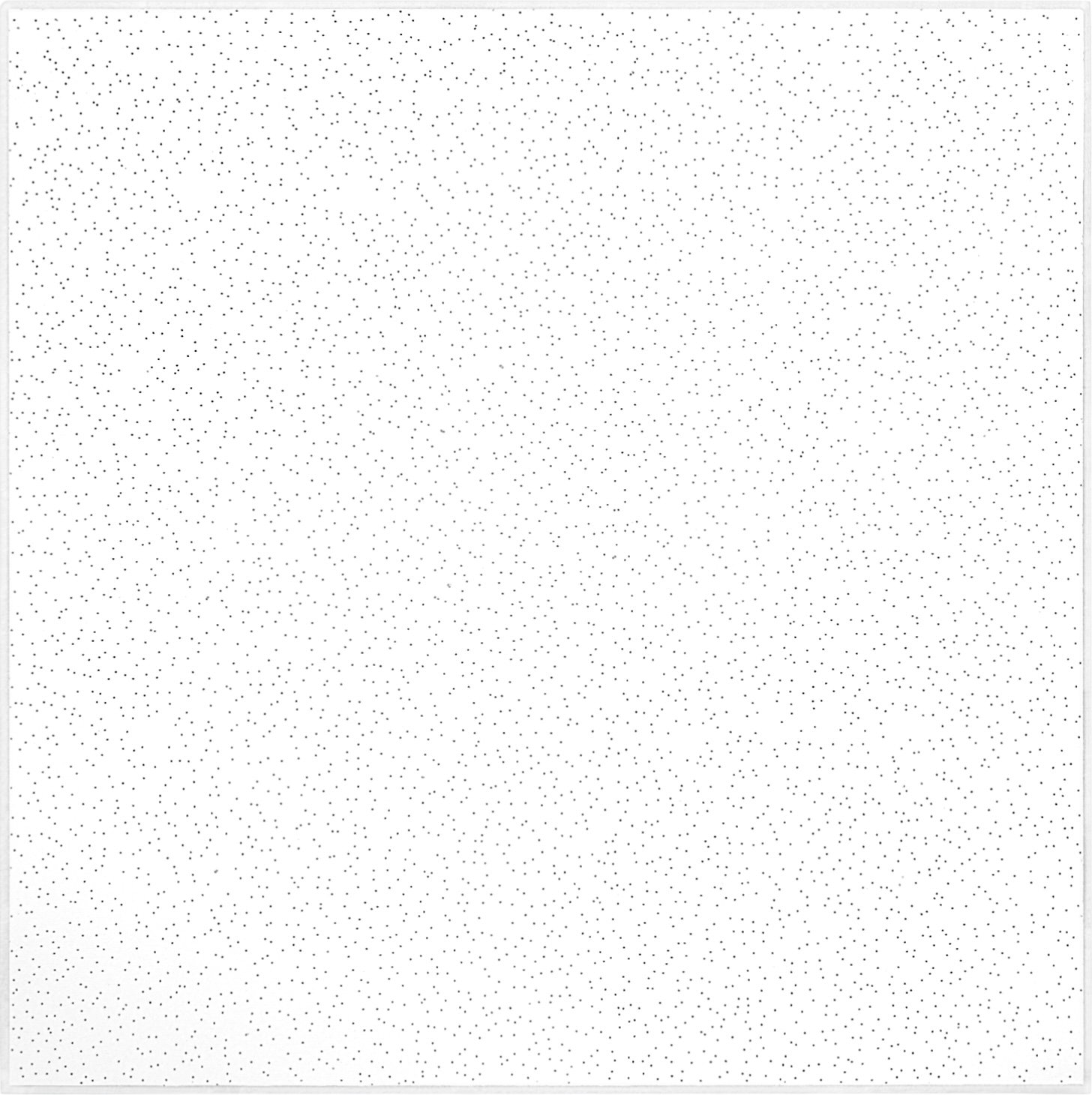

ACOUSTIC PINHOLE 15MM

Square

Tegular

Micro

Technical Specifications
MaterialWet Formed Mineral Fiber
SurfaceVinyl Latex
ColourWhite
Size595mm X 595mm
Thickness15mm
Edge ConstructionSquare/Tegular/Micro
NRC>0.60
Fire ResistanceBS 476: Part 4 & BS 476 Part 6 & 7 (certified)
Humidity Resistance(RH)95% (Certified)
Light Reflectance0.85 – 0.90(Certified)
Density260 - 300 kg/m3
AsbestosFree
Recycled Material50 to 60%

Snow Leopard Series

RH 99 NRC ≥ 0.80

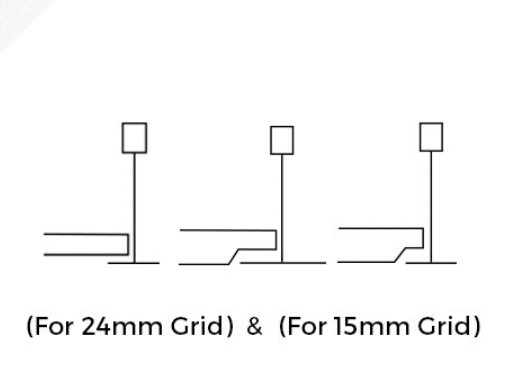

Acoustic Fissure Premium (Angular Tegular / Bevelled Micro)

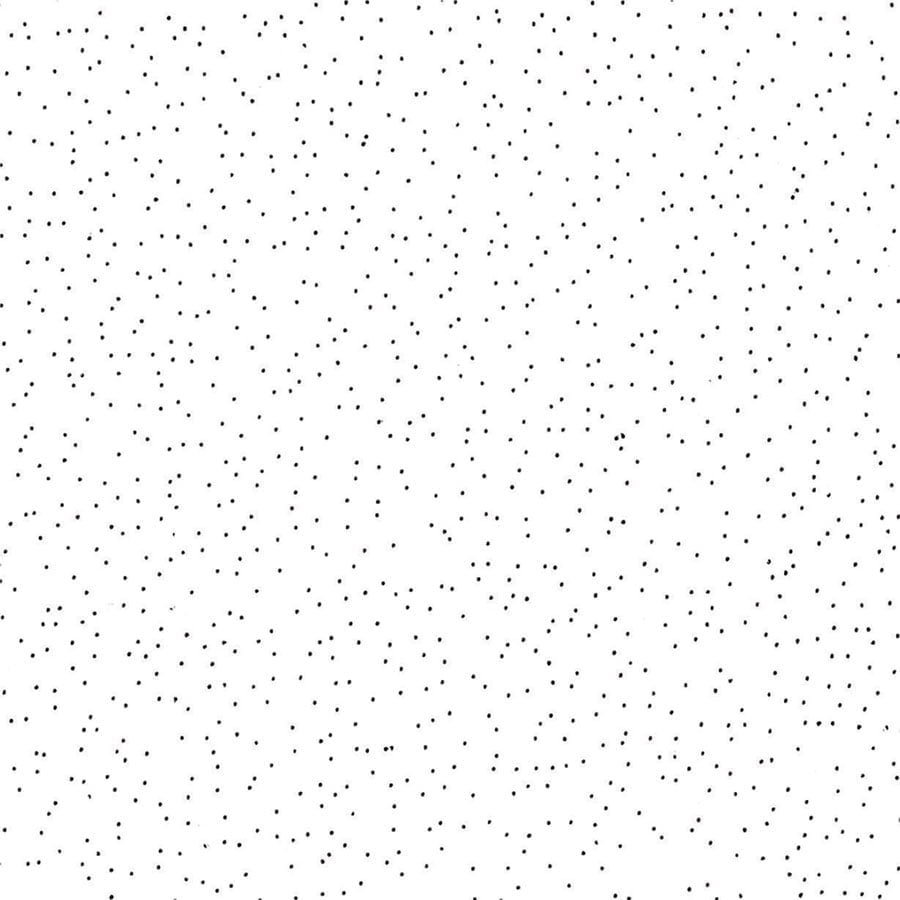

Acoustic Pinhole Premium (Angular Tegular / Bevelled Micro)Tegular

APT-002 (Bevelled Micro) 16mm

ColorWhite
Size595mm X 595mm
Thickness15mm / 16mm
Edge ConstructionAngular Tegular / Bevelled Micro
NRC≥0.80 (Certified)
Fire ResistanceBS-476-4:1970 (Certified)
Humidity Resistance(RH)99% (Certified)
Light Reflectance0.80 – 0.85 (Certified)

Mineral Fiber Ceiling Tiles 12mm

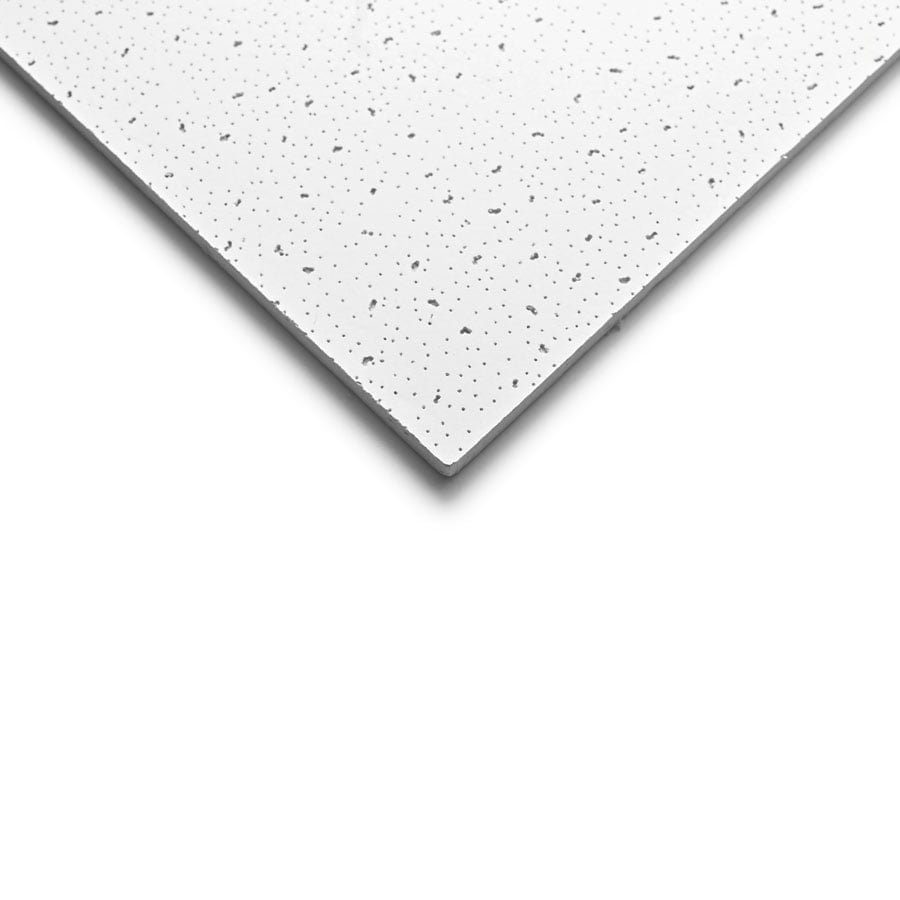

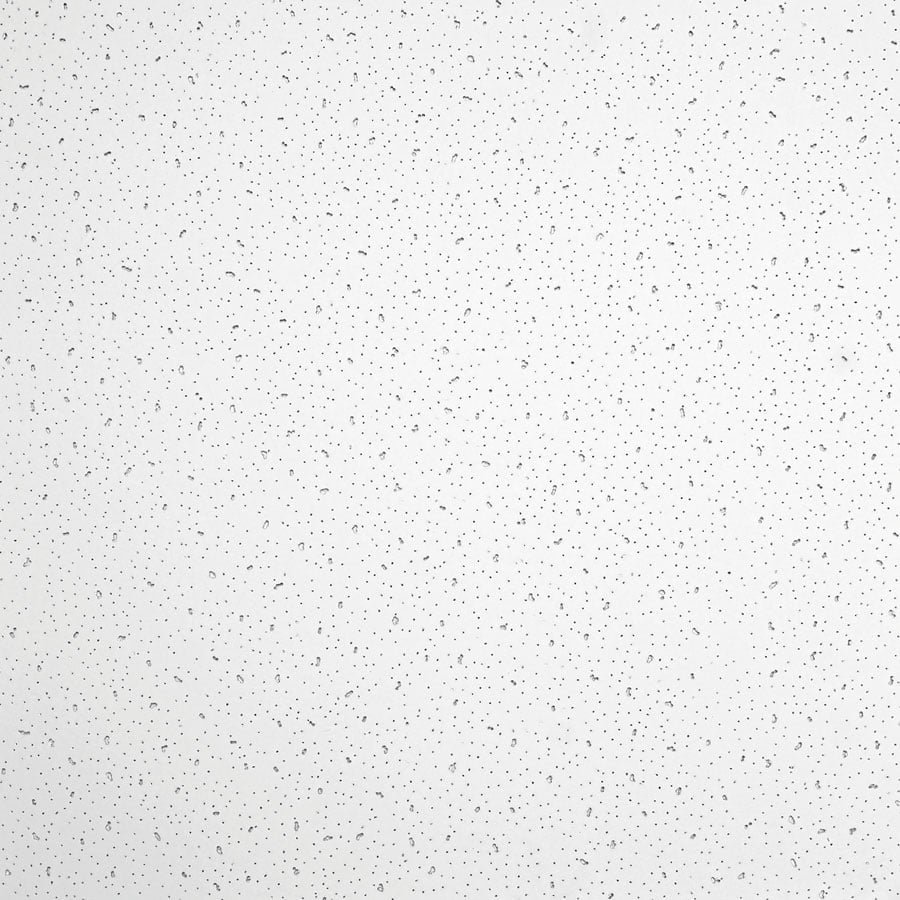

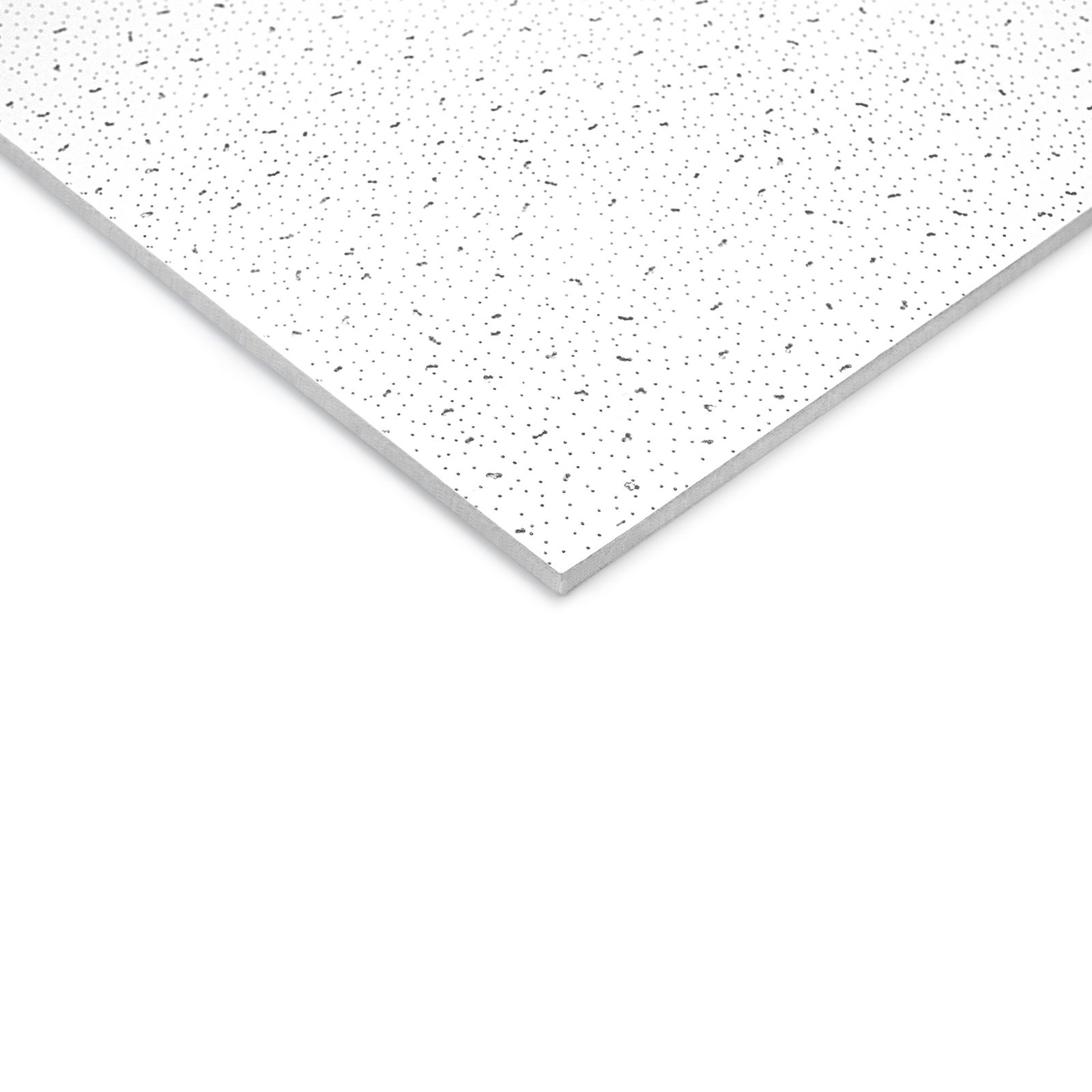

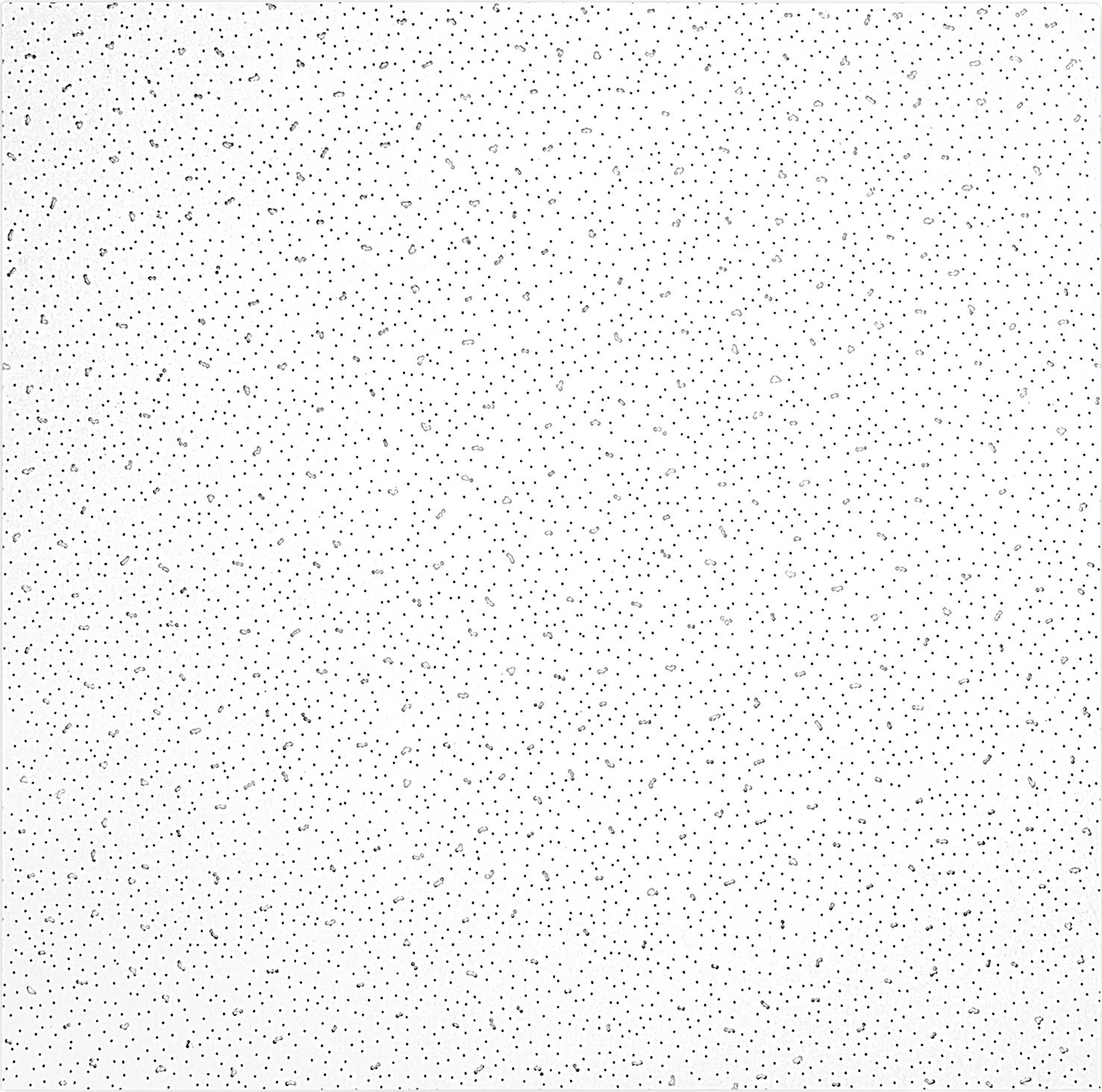

Acoustic Fissure (Square)

Technical Specifications
MaterialWet Formed Mineral Fiber
SurfaceVinyl Latex
ColourWhite
Size595mm X 595mm
Thickness12mm
Edge ConstructionSquare
NRC>0.50
Fire ResistanceBS 476: Part 4
Humidity Resistance(RH)95% (Certified)
Light Reflectance0.80 – 0.85 (Certified)
Density260 - 300 kg/m3
AsbestosFree
Recycled Material50 to 60%

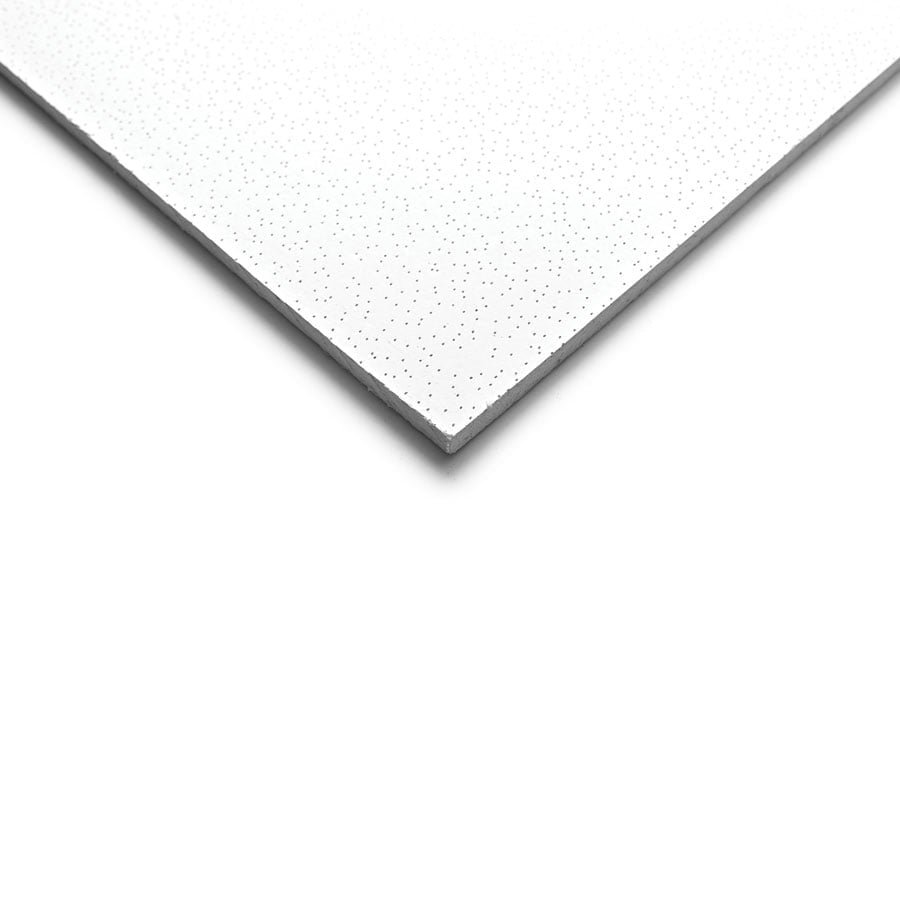

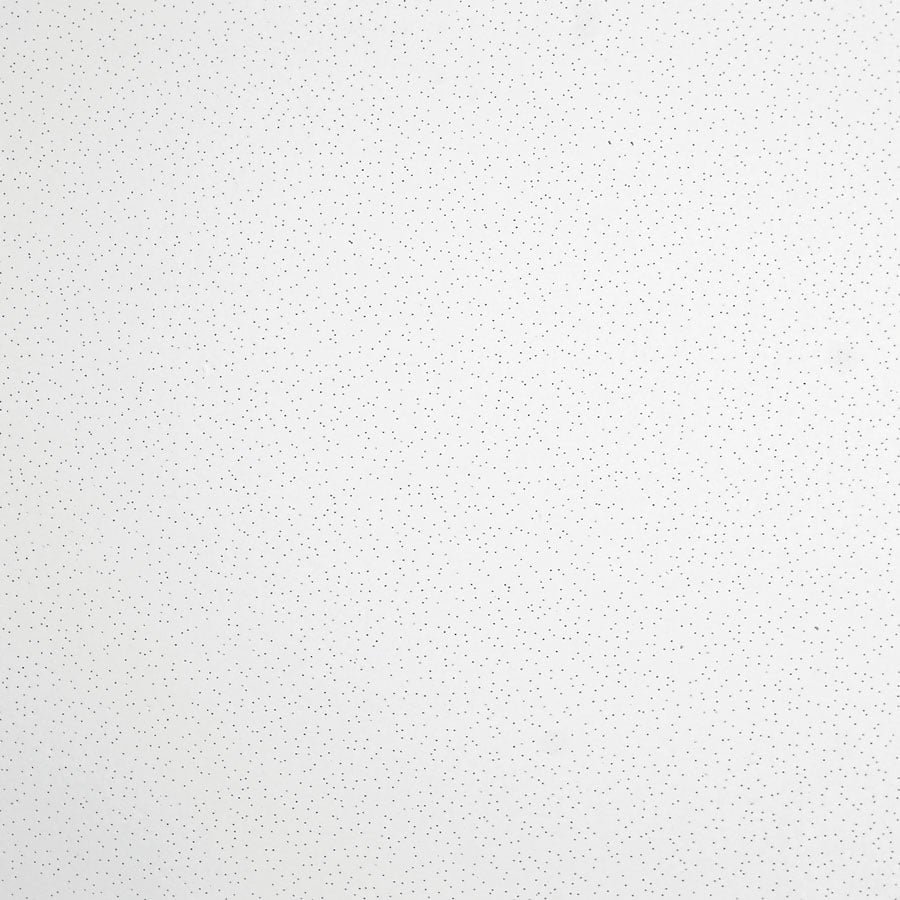

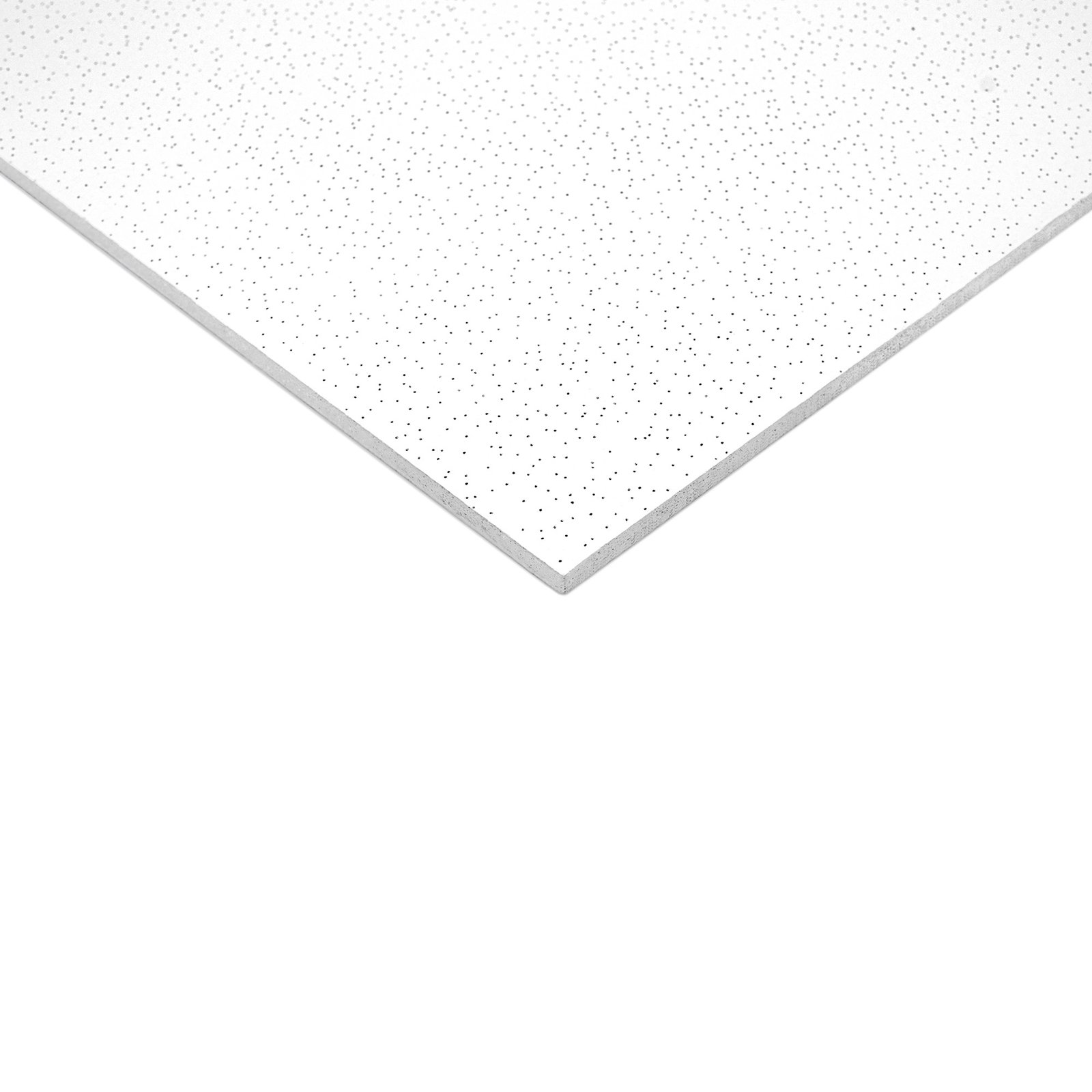

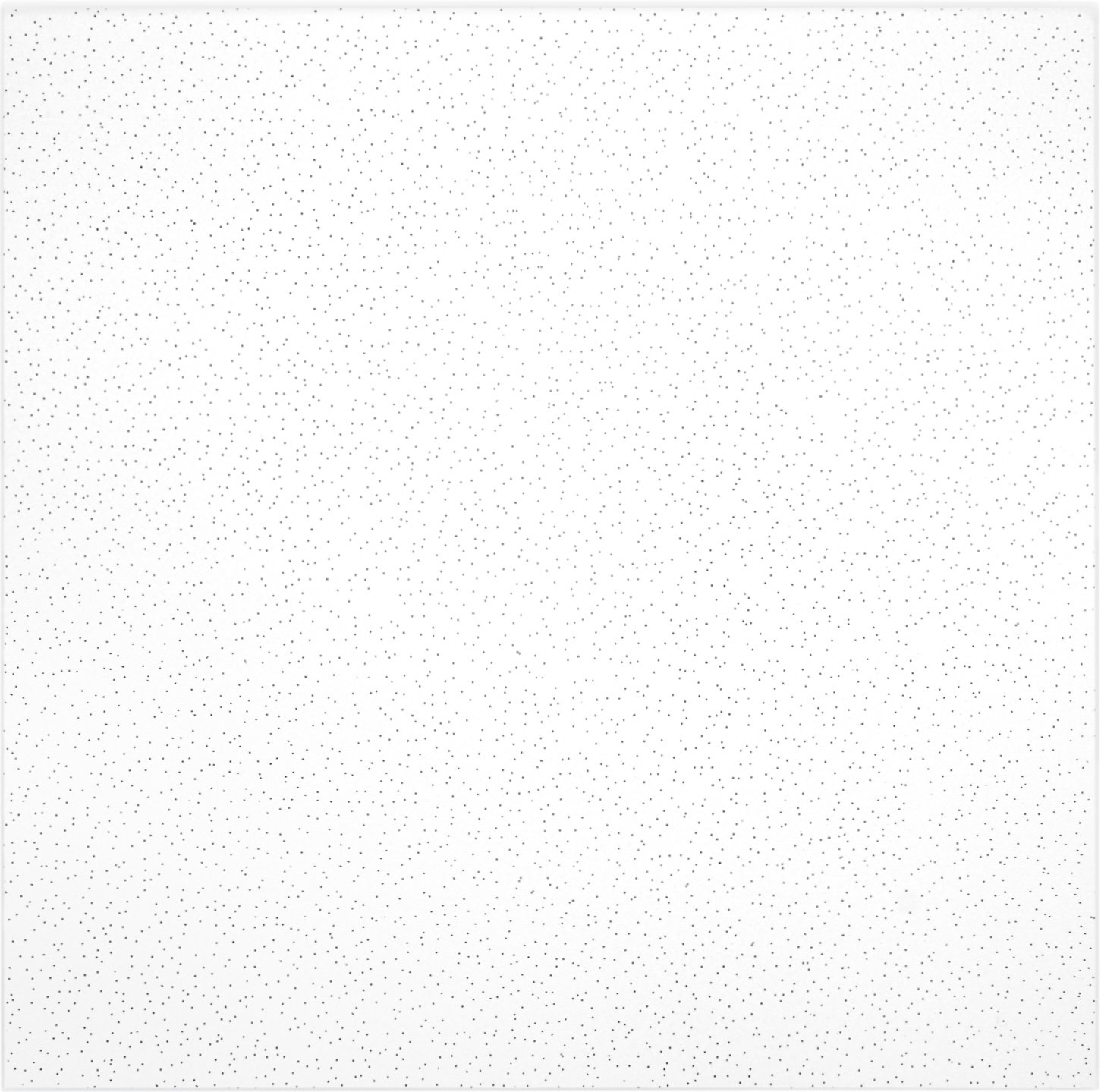

Acoustic Pinhole (Square)

Technical Specifications
MaterialWet Formed Mineral Fiber
SurfaceVinyl Latex
ColourWhite
Size595mm X 595mm
Thickness12mm
Edge ConstructionSquare
NRC>0.50
Fire ResistanceBS 476: Part 4
Humidity Resistance(RH)95% (Certified)
Light Reflectance0.80 – 0.85 (Certified)
Density260 - 300 kg/m3
AsbestosFree
Recycled Material50 to 60%

Key Features of Diamond Mineral Fiber Ceiling Tiles

01

Acoustic Performance

Mineral fiber tiles feature a porous surface that absorbs sound and reduces echo, making them ideal for environments where noise control is essential—like conference rooms, hospitals, and classrooms.

02

Aesthetic Options

Offered in multiple textures and surface designs, these tiles complement a wide range of interior styles—from modern minimalism to institutional practicality.

03

Sustainability

Composed of recycled and eco-friendly materials, Diamond Mineral Fiber Tiles are low-impact and fully recyclable, supporting green building certifications and sustainability goals.

04

Fire Resistance

Naturally fire-resistant, these tiles meet national safety standards and help prevent flame spread—suitable for both commercial and residential interiors.

Installation Guide

Proper installation ensures longevity and optimal performance:

01

Surface Preparation

Ensure the ceiling base is clean, dry, and free of debris or damage. Smooth out irregularities before beginning installation.

02

Measurement & Layout

Create an installation layout. Choose tile sizes and patterns based on room dimensions and aesthetic goals. Professional consultation is advised.

03

Suspension System Setup

Install main runners and cross tees securely using a GI T-grid system. Ensure precise levelling for a clean tile fit.

04

Cutting and Placement

Cut and install tiles carefully according to your plan. Ensure all edges sit flush to avoid visible gaps or misalignment.

Maintenance Tips

01

Routine Cleaning

Use a mild cleaning solution with a non-abrasive cloth or feather duster. Avoid soaking the surface, as mineral fiber is absorbent.

02

Stain Management

Clean stains immediately to prevent permanent discolouration. Always test cleaning agents on a small area before full application.

What Are Mineral Fiber Ceiling Tiles?

Mineral fiber ceiling tiles are manufactured using a blend of mineral wool, recycled content, and binding materials. This composition helps achieve excellent sound absorption, humidity resistance, and thermal stability. When installed within a suspended ceiling system, they deliver a neat, modern finish while hiding ducting, electrical wiring, and HVAC systems.

Key Benefits Mineral Fiber Ceiling Tiles
  • High sound absorption to reduce noise levels and echo in large spaces | NRC ≥0.80 (Certified)
  • Light reflectance improves brightness and reduces artificial lighting needs | 0.85 – 0.90(Certified)
  • Humidity resistance makes them suitable for changing climatic conditions | (RH)99% (Certified)
  • Thermal efficiency helps maintain comfortable indoor environments
  • Cost-effective solution for large commercial installations
  • Fire resistance and safety compliance for modern building requirements | BS 476: Part 4 & BS 476 Part 6 & 7 (certified)

These advantages make mineral fiber ceiling tiles a top priority in projects where acoustic performance and comfort matter.

Acoustic Performance of Mineral Fiber Ceiling Tiles

Mineral fiber ceiling tiles provide sound blocking and sound absorption, improving speech clarity and reducing disturbance. This is especially useful in areas like:

  • Corporate offices and conference rooms
  • Schools, universities, and training centers
  • Call centers and open-plan workspaces
  • Healthcare and hospitality spaces

By reducing noise levels, they create a more productive and pleasant indoor environment.

Applications of Mineral Fiber Ceiling Tiles

Mineral fiber tiles are suitable for a wide range of suspended ceiling systems, including:

  • Lay-in grid ceilings
  • Concealed or semi-concealed systems
  • Modular ceiling designs
  • Large open commercial areas
  • Retail showrooms and airports

Their design flexibility allows architects to blend performance with visual appeal.

Light Reflectance and Aesthetics of Mineral Fiber Ceiling Tiles

High light reflectance (0.85 – 0.90 Certified) improves indoor illumination and enhances visual comfort. Spaces appear brighter and more spacious, helping reduce energy consumption. With uniform textures and clean surfaces, mineral fiber tiles provide a sleek, professional finish suitable for modern architecture.

Humidity Resistance & Durability of Mineral Fiber Ceiling Tiles

These tiles are engineered to handle humidity resistance (RH99% Certified), preventing sagging, warping, and staining. This makes them a reliable option in variable climates and areas where moisture is a concern, such as:

  • Coastal cities
  • Air-conditioned commercial spaces
  • High-traffic buildings

They retain shape, offering long-lasting performance with minimal maintenance.

Why Choose Diamond Ceilings Mineral Fiber Ceiling Tiles?

Diamond Ceilings supplies premium mineral fiber ceiling tiles that deliver a perfect blend of acoustic comfort, visual appeal, and safety standards. Our product range is designed for modern architectural requirements, adheres to industry norms, and offers quick, clean installation.

  • Consistent quality control
  • Professional recommendations for project needs
  • Wide installation network across India
  • Support for contractors, architects, and interior firms

Whether you’re designing a corporate environment or a large public venue, Diamond Ceilings ensures reliable performance and peace of mind.

Request Pricing or Technical Specifications

Explore our full range of mineral fiber ceiling tiles and find the ideal solution for your project. For project estimates, samples or drawings, contact our technical team. We supply mineral fiber ceiling tiles for corporate, retail, institutional and industrial developments across India.

Certifications & Quality Standards

Diamond Mineral Fiber Tiles are certified with fire safety, humidity resistance (RH 99), light reflectance to meet industry standards and quality.
