T-Grid Ceiling System for Commercial Projects
The T-Grid Ceiling System from Diamond Ceilings is engineered for high durability, fast installation, and a clean architectural finish in commercial and institutional spaces. This t-grid ceiling system supports multiple ceiling tile formats and delivers long-term structural stability with minimal maintenance.

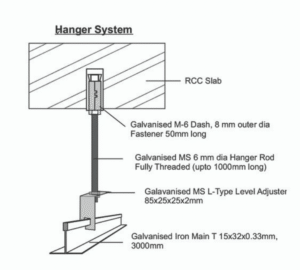

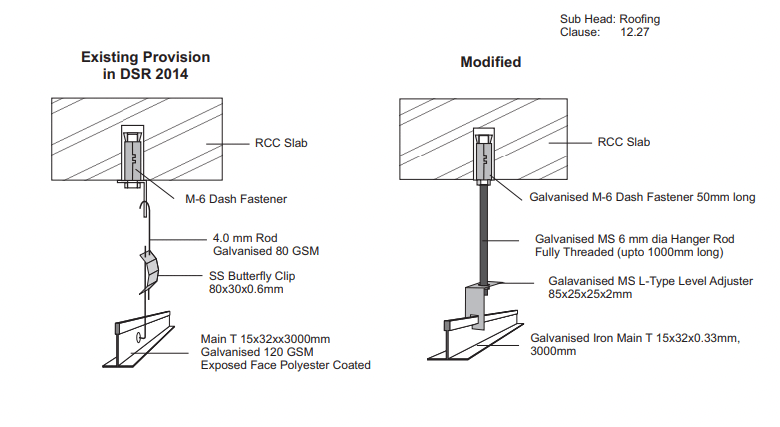

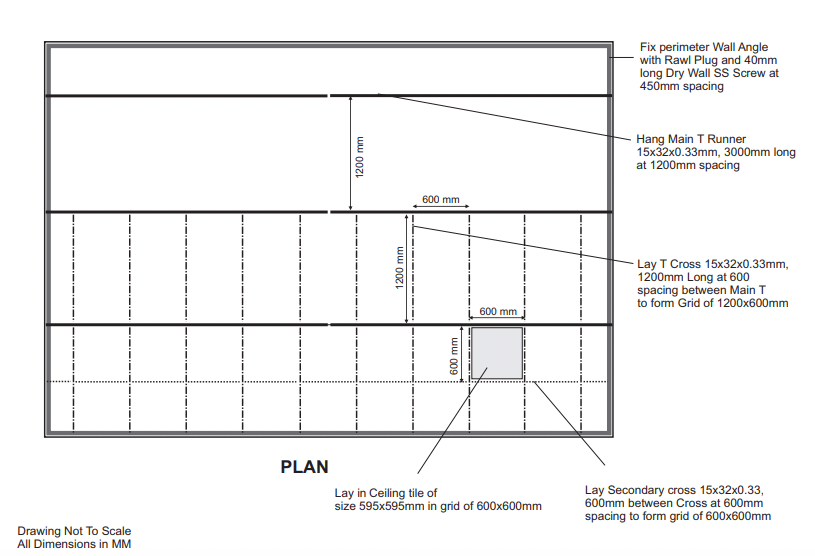

T-Grid Suspension and Tile Fixing Details
Diamond Suspension System
(T-Grid)

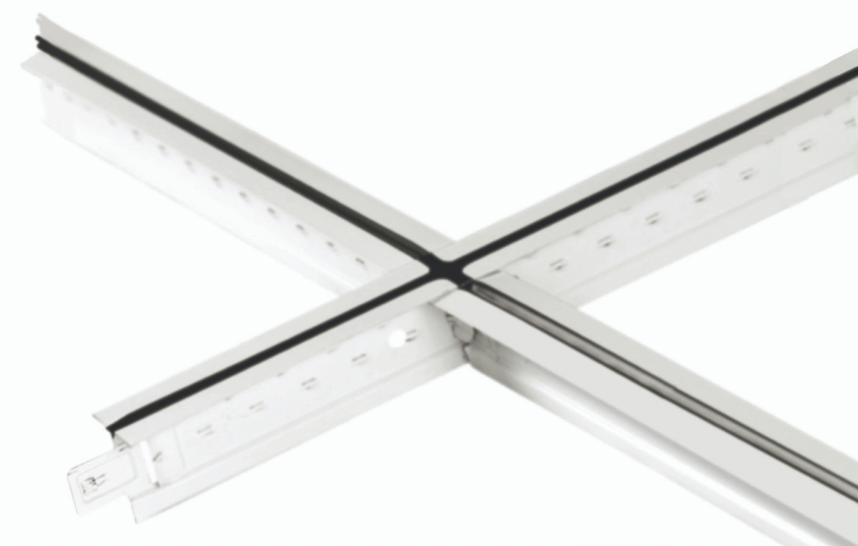

Groove 24
Technical Specifications
| Color | White with Black Groove |
| Size | 24mm X 32mm X 3000mm |
| Thickness | 0.33mm |
| Zinc Coating | 120 GSM |
| Load Bearing Capacity | upto 2.2Kg/SFT |

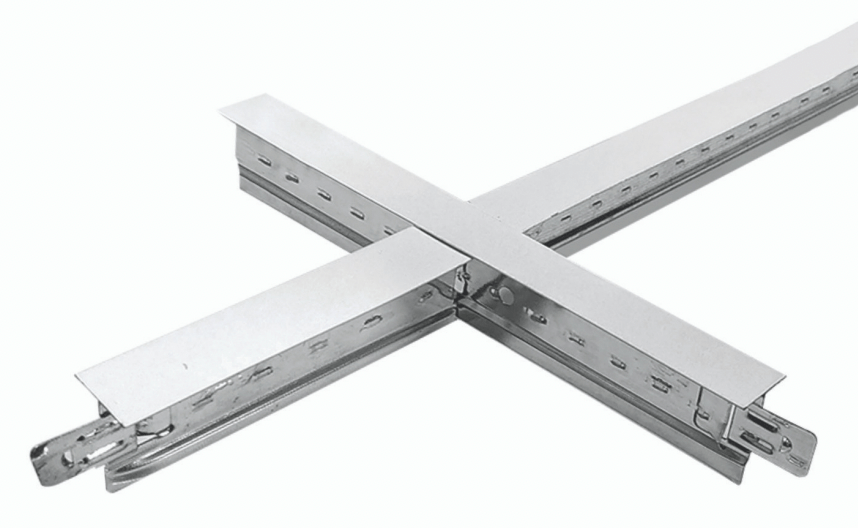

Plain Grid 24mm
Technical Specifications
| Color | White |
| Size | 24mm X 32mm X 3000mm 24mm X 38mm X 3600mm |
| Thickness | 0.33mm |
| Zinc Coating | 120 GSM |
| Load Bearing Capacity | upto 2.2Kg/SFT |

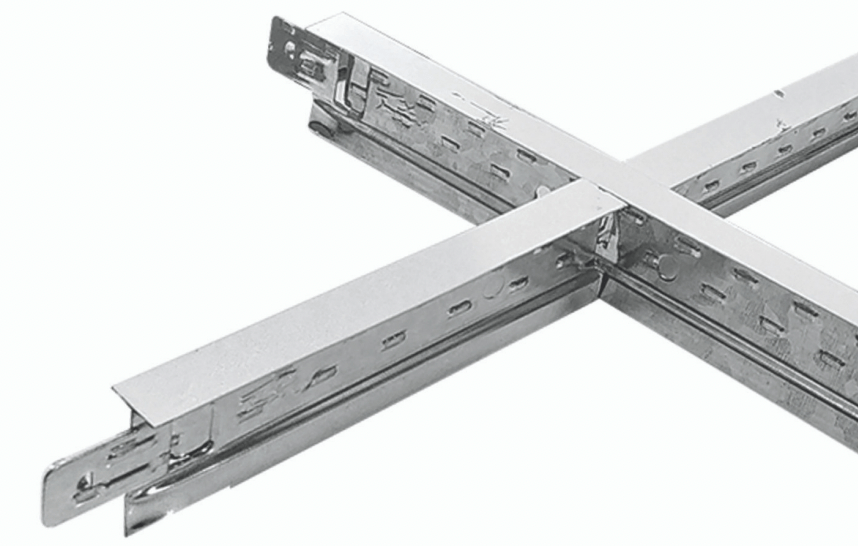

Plain Grid 15mm
Technical Specifications
| Color | White |
| Size | 15mm X 32mm X 3000mm |
| Thickness | 0.33mm |
| Zinc Coating | 120 GSM |
| Load Bearing Capacity | upto 2.2Kg/SFT |

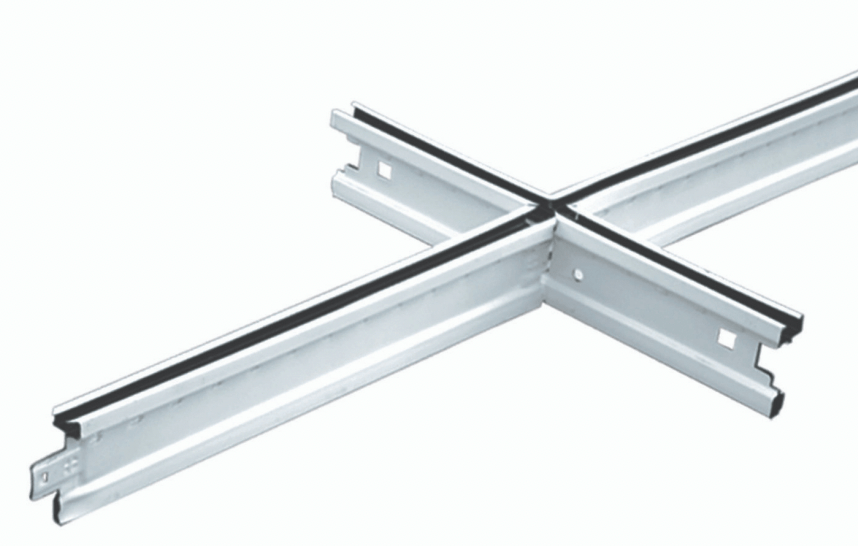

Silhouette Grid
Technical Specifications
| Color | White with Black Silhoutte |
| Size | 15mm X 32mm X 3000mm |
| Thickness | 0.33mm |
| Zinc Coating | 120 GSM |
| Load Bearing Capacity | upto 2.2Kg/SFT |

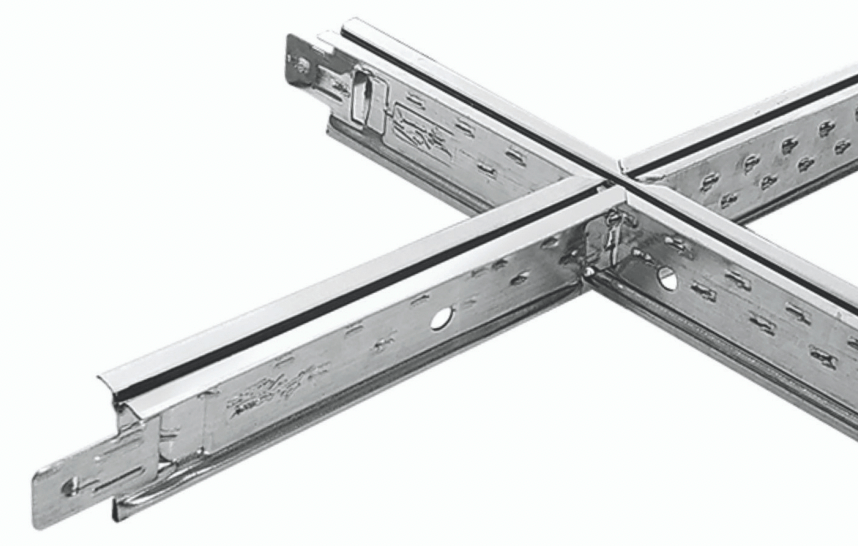

Sleek Grid
Technical Specifications
| Color | White with Black Groove |
| Size | 15mm X 32mm X 3000mm |
| Thickness | 0.33mm |
| Zinc Coating | 120 GSM |
| Load Bearing Capacity | upto 2.2Kg/SFT |
Key Features of the Diamond GI Suspension System
Diamond Suspension Systems are designed are compatible with all Diamond Ceilings product ranges, and are designed to bring durability, design flexibility, and clean finish to commercial, institutional, and high-traffic environments.
Our system uses galvanised steel for main T and cross tee components, designed for exceptional rigidity and corrosion resistance. Each section locks into place with a strong connector head, ensuring that the grid system stays aligned and stable throughout the life of the building. This precision-engineered structure prevents sagging and keeps the ceiling perfectly level.
Contractors benefit from lightweight components and a smart locking mechanism that reduces installation time. The system enables clean alignment, easy tile placement, and faster project handover. Whether the project uses GRG ceiling tiles, metal clip-in tiles, or mineral fiber tiles, the suspension system is fully compatible.
The T grid framework supports HVAC outlets, light fixtures, and access panels without affecting structural performance. Maintenance teams can quickly remove tiles, access services above the ceiling, and close the grid without visible gaps or damage.
Paired with acoustic tiles, the grid ceiling helps reduce sound transmission and enhances comfort in busy environments such as hospitals, corporate offices, classrooms, and transport hubs. The concealed mechanical space keeps interiors clean, modern, and visually organised.
All main components are manufactured from galvanised steel for high fire resistance and structural integrity. The main T and cross tee connections provide long-term load support, making this system ideal for high-traffic commercial and public buildings. The system is built to last and requires very low maintenance during its life cycle.
Available in multiple widths and lengths, our system adapts to standard and custom project specifications. Angle trims and wall angle profiles ensure clean edges where walls meet the ceiling.
- Main T: 15 mm / 24 mm options
- Cross Tee: 600 mm / 1200 mm
- Wall Angle: 20 x 20, 24 x 24, 20 x 10 x 10 x 15, 3000 mm
- High-grade galvanised steel
- Compatible with acoustic tiles and suspended ceiling applications
- Corporate offices and boardrooms
- Hospitals and healthcare spaces
- Retail shops and shopping malls
- Schools, universities, training centres
- Airports and public buildings
- Strong, rigid grid system with corrosion resistance
- Fast installation with locking connectors
- Works with access panels and light fixtures
- Improves acoustic and aesthetic quality
- Easy servicing and tile replacement
- Long-term cost efficiency
Frequently Asked Questions | T-Grid False Ceiling System
A T-Grid Ceiling System is a suspended ceiling framework that supports GRG, metal, mineral fiber, and acoustic tiles. The main T and cross tee components form a grid that holds each tile securely.
It works with GRG ceiling tiles, metal clip-in tiles, and mineral fiber tiles. The framework also supports lighting systems, vents, and access panels.
Yes. Tiles lift up easily, allowing access to electrical and HVAC services. The grid system ensures tiles return to position with a clean edge.
The galvanised steel construction provides excellent fire-resistance and ensures long-term safety.
Request Pricing or Technical Specifications
For project estimates, samples or drawings, contact our technical team. We supply T-grid Fle ceiling systems for all corporate, retail, institutional and industrial developments across India.
Certifications & Quality Standards
Diamond’s GI Suspension System is compatible with all our ceiling products—including CPWD and MES-certified GRG tiles, and CPWD-certified metal tiles—and is manufactured under strict in-house quality control to ensure reliable performance.
Pricing and Ordering
Looking for accessible GI T-Grid Ceiling Suspension Systems, with consistent finish and certified performance?
